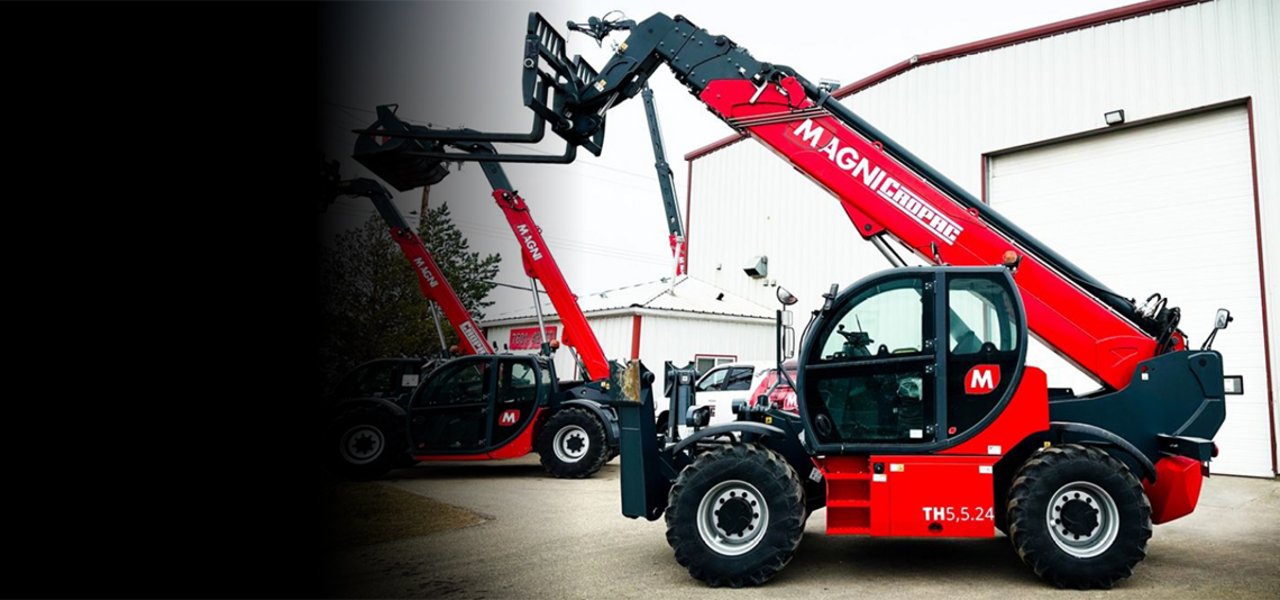

FIXED TELEHANDLER (TH)

FLEXIBLE AND ADAPTABLE TO YOUR NEEDS

Secure, robust, and adaptable, our lineup of fixed telehandlers seamlessly blends dependability with cutting-edge technology, ensuring exceptional performance across various tasks. Select the Magni model that best aligns with your specific requirements. The TH series is highly versatile, catering to diverse needs, whether in the industrial, construction, or mining sectors. Magni's telehandlers are perfect for every job.



TOP FEATURES
7" inch touchscreenCompressed cabin, 100% air filtration
Multi-adjustable steering columnHydrostatic transmission with variable displacement pump and motor
Load sensing hydraulicsMore productivity with lower fuel consumption
Wide range of standard equipmentThree different steering modes
Oscillating and steerable rear axle with hydraulic lockTwo-speed front/rear and permanent 4WD


FIXED TELEHANDLER MODEL OPTIONS

Magni TH fixed telehandlers are available in 13 different models with lifting capacities from 4.5 tonnes up to 6 tonnes. Lifting heights on the TH reach trucks start at 8 metres and go up to 24 metres.

 TH 3.6
(Specification)

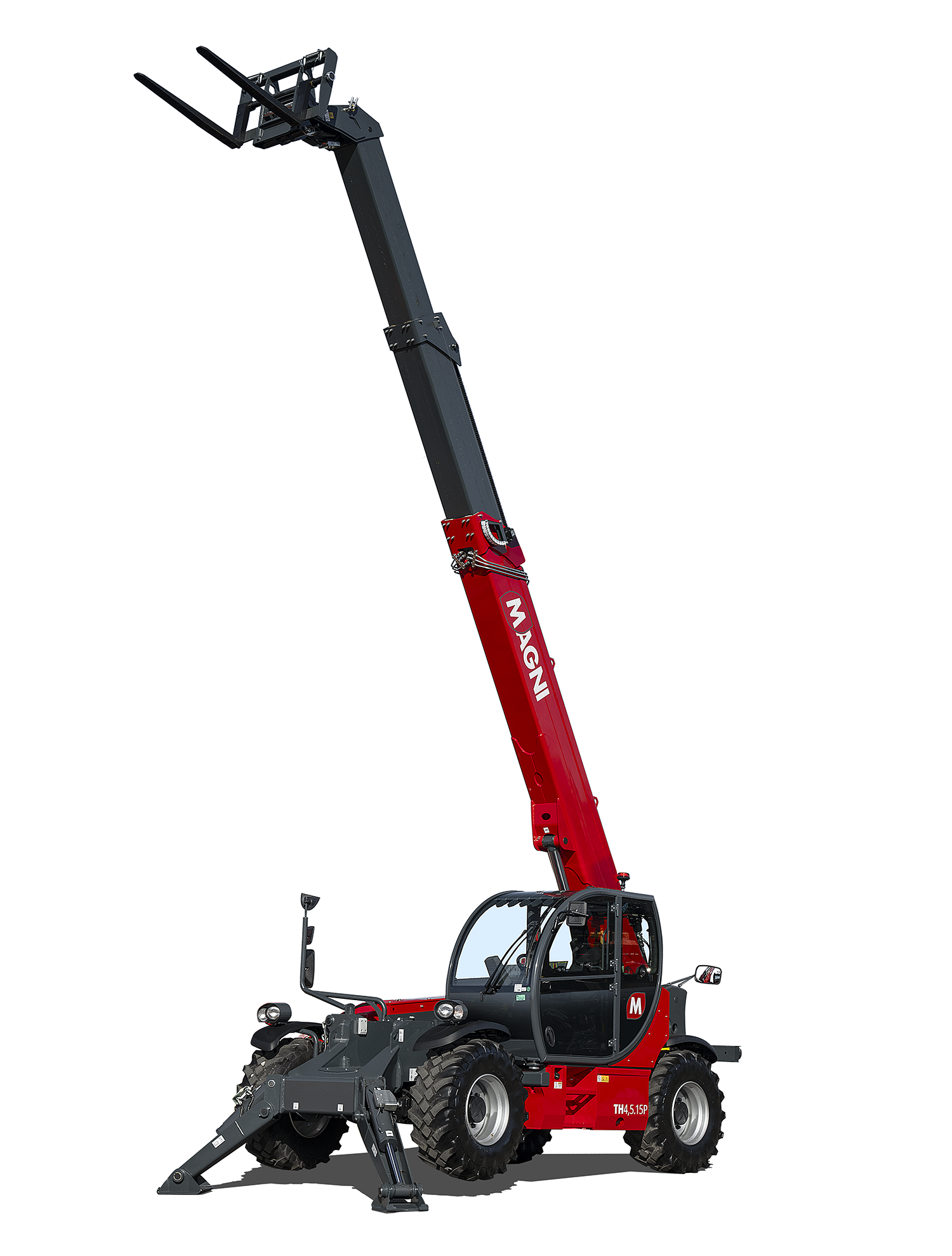

TH 4,5.15 P
(Specification)

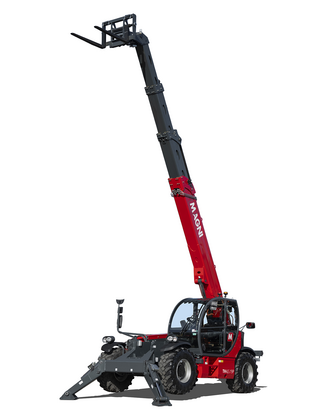

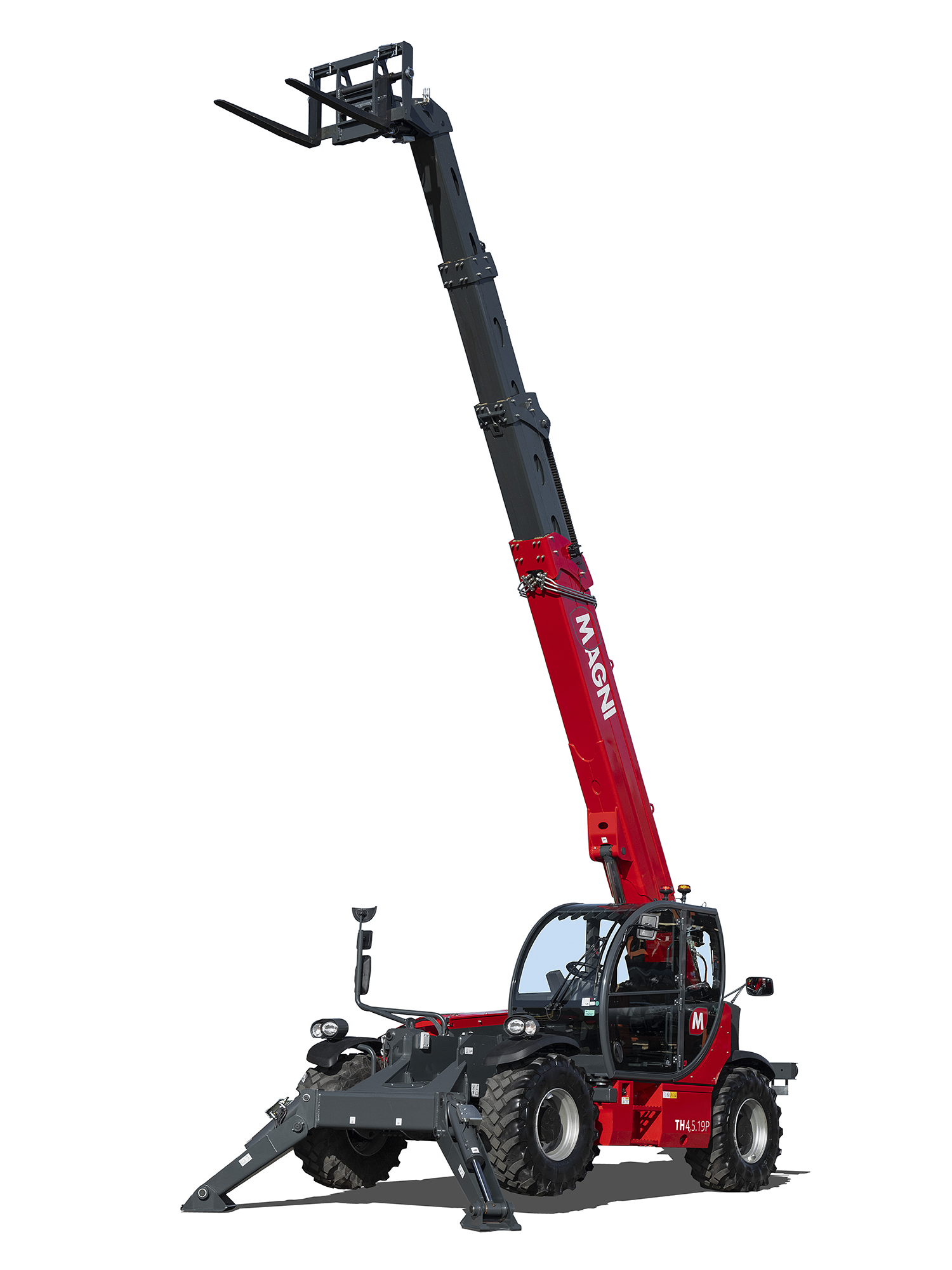

TH 4,5.19 P
(Specification)

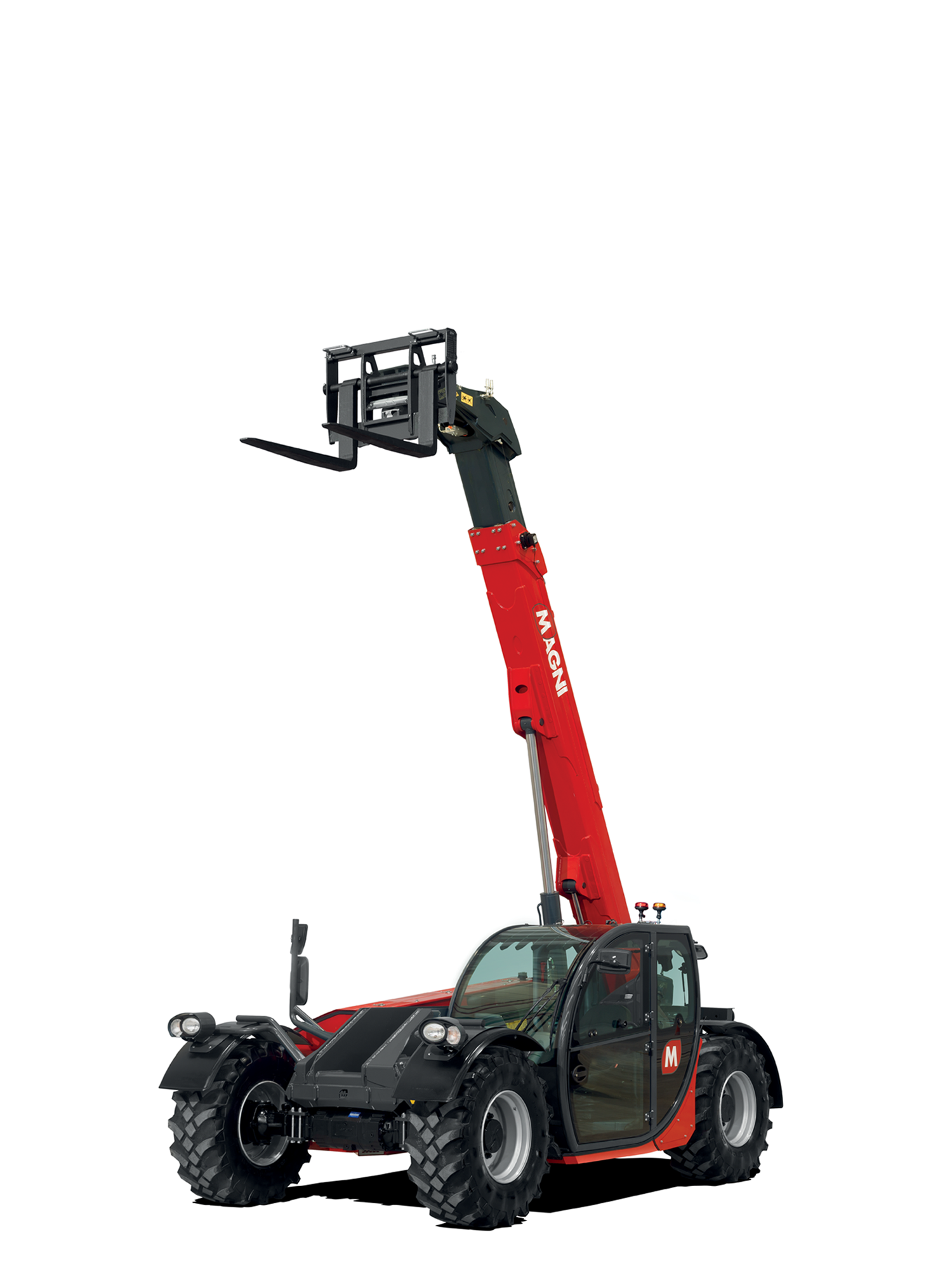

TH 5.8 P
​​​​​​​(Specification)

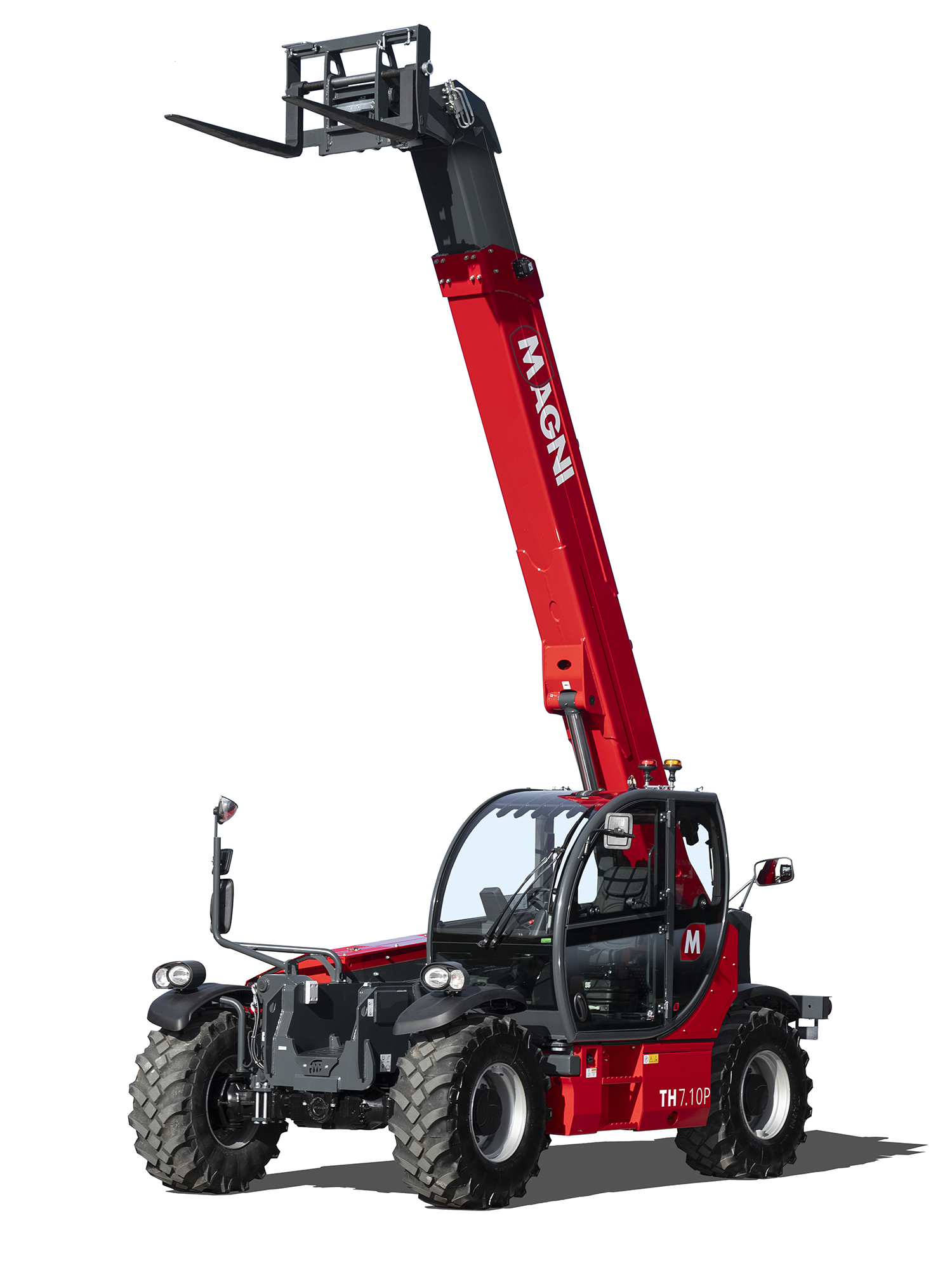

TH 7.10 P
​​​​​​​(Specification)

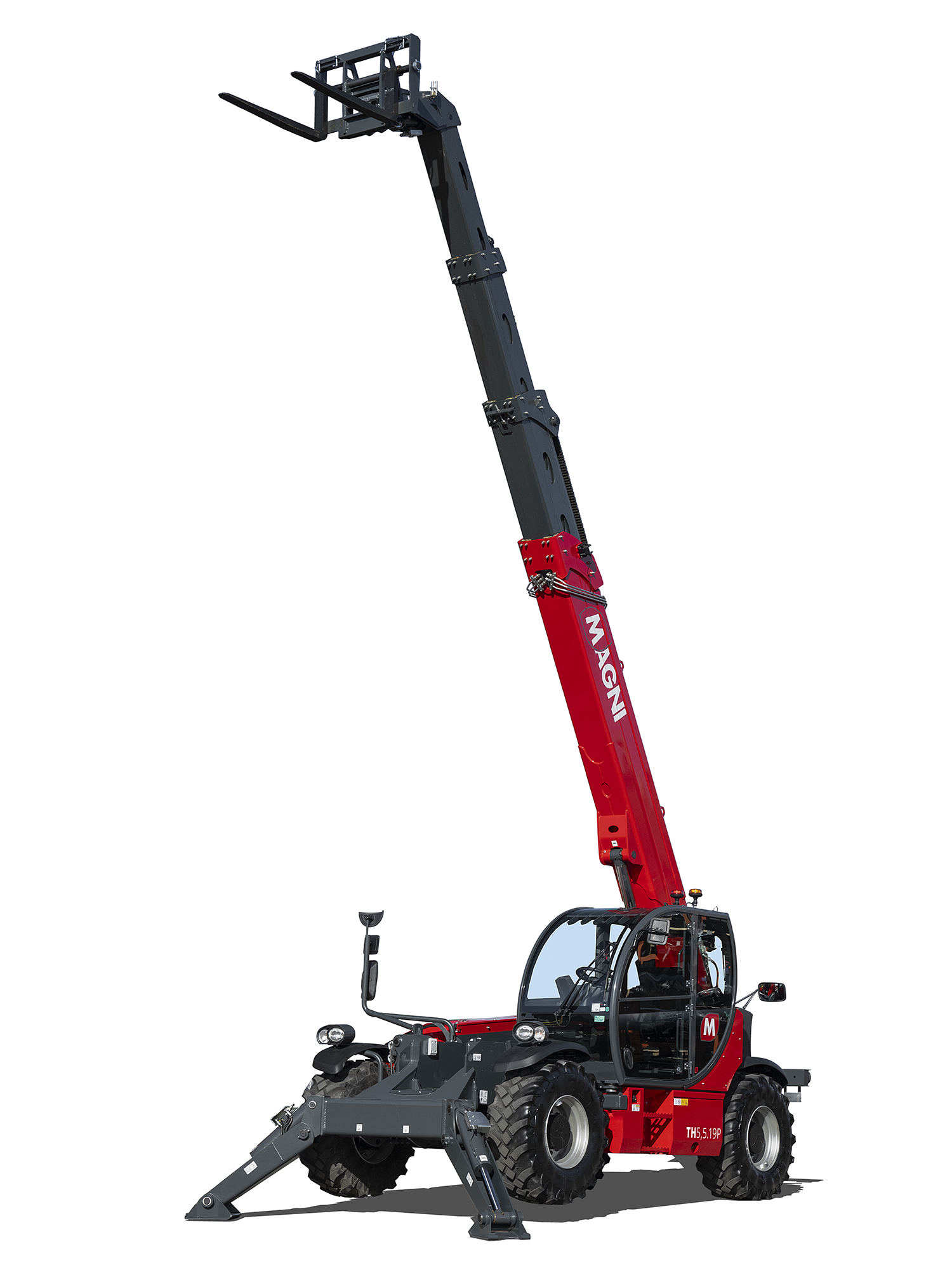

TH 5,5.19 P
​​​​​​​(Specification)

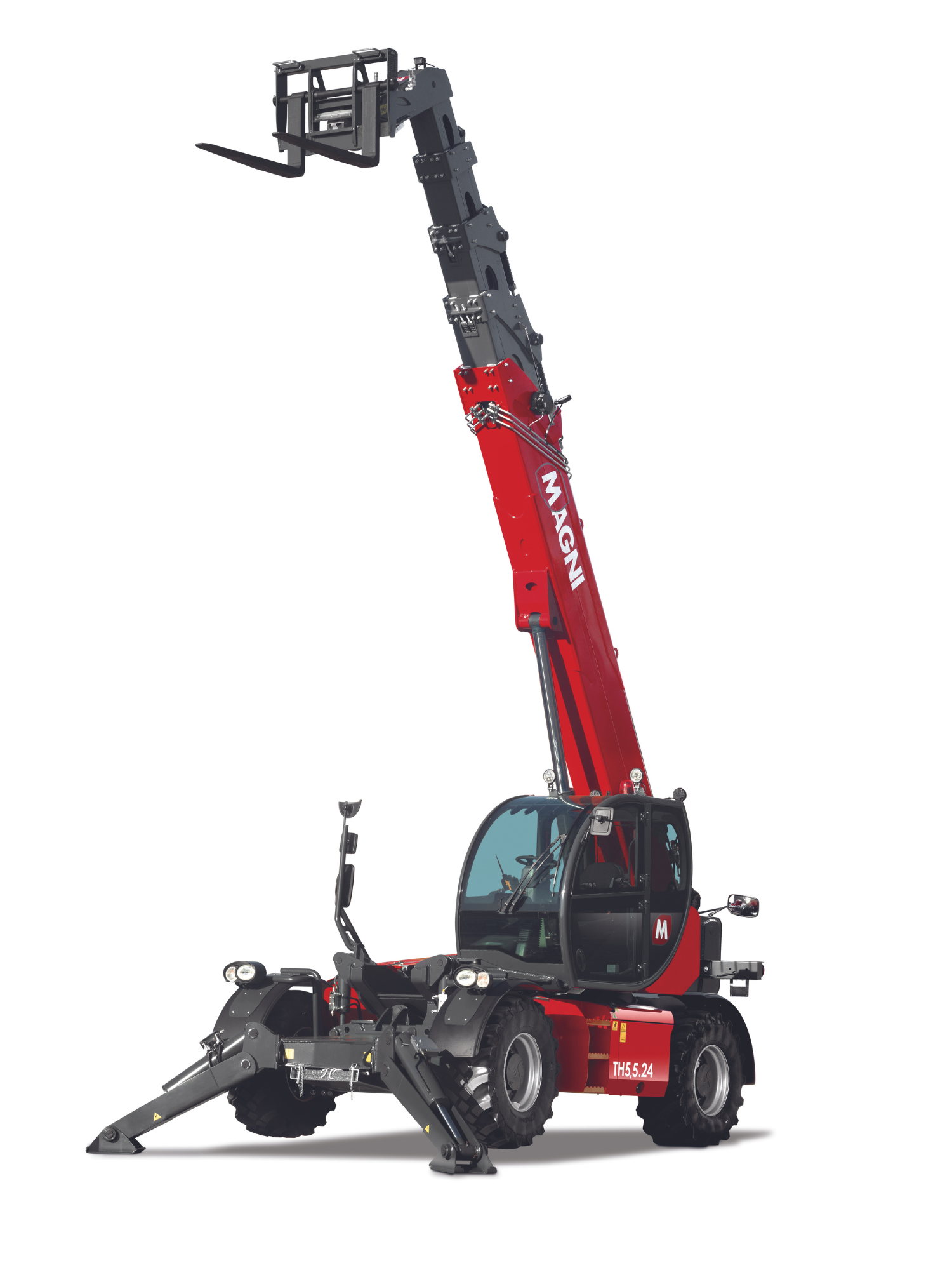

TH 5,5.24
​​​​​​​(Specification)​​​​​​​
Unladen weight4.850 kg12,500 kg12,800 kg8,500 kg11,900 kg14,100 kg16,100 kg
Rated power55 kW74,4 kW74,4 kW74,4 kW74,4 kW74,4 kW100 kW
Engine modelDeutz TCD 2,9 L4 Stage VDeutz TCD 3,6 L4 Stage VDeutz TCD 3,6 L4 Stage VDeutz TCD 3,6 L4 Stage VDeutz TCD 3.6 L4 Stage VDeutz TCD 3,6 L4 Stage VDeutz TCD 3,6 L4 Stage V
Max. Height5,80 m15,20 m18,80 m7,60 m9,50 m18,80 m23,90 m
Max. Lifting capacity3,000 kg4,500 kg4,500 kg5,000 kg7,000 kg5,500 kg5,500 kg
Max. Reach3,20 m10,40 m14,20 m4,30 m5,90 m14,10 m19,10 m
Max. lifting capacity w. max. reach1,100 kg1,500 kg600 kg1,700 kg2,500 kg1,000 kg450 kg
Max. lifting capacity w. max. lifting height2.500 kg3,500 kg3,000 kg3,500 kg6,000 kg3,000 kg1,500 kg

Check the full collection!

Browse our product catalogue and see our full range of telehandlers.

Download now

RIGHT ATTACHMENTS FOR EACH JOB

In addition to the standard comprehensive technology package and high manufacturing quality, an important factor is the wide range of attachments. The range includes, among others.

Forks
Rotating forks
Jibs
Winches
Buckets
Hooks
Platforms

MYMAGNI REMOTE MONITORING SYSTEM

The MyMagni remote monitoring system helps you manage your machines. The app gives you a complete overview to monitor your machines and you can see the most important things on your own screen. You can monitor error codes on the machine's CAN bus and track active events on the machine. Get access to machine reports and maintenance. MyMagni can be ordered to all TH-handlers as an additional option.

REDUCED MAINTENANCE COSTS

An EasyService contract offers your telehandler scheduled maintenance at a fixed price. No nasty surprises, as the service includes all the materials and labour needed for maintenance. You will only receive a service invoice for your machine when the work is done. You can concentrate on your business, because Avesco will service your machine professionally and on time for you.

READ MORE


EXTENDED EQUIPMENT PROTECTION

You can buy an extended warranty for your Magni handler. Choose from several options for your guarantee, and the duration of the contract in years/hours of use, to define the level of protection you need.
