Conveyors
Finlay® conveyors have been developed as a comprehensive range of robust, reliable and efficient bulk material handling and stockpiling solutions. The range is comprised of Tracked Mobile Conveyors, High and Low Level Feeders, Radial and Telescopic Stockpilers.
Each of our Conveyors provides mobility and flexibility in a wide range of free flowing bulk material applications including aggregates, ores, coal, wood chips, pellets, fertilizers, grains and truck loading. Each model has been designed for moving or stockpiling material efficiently and productively whilst minimizing operator and other associated on-site costs.

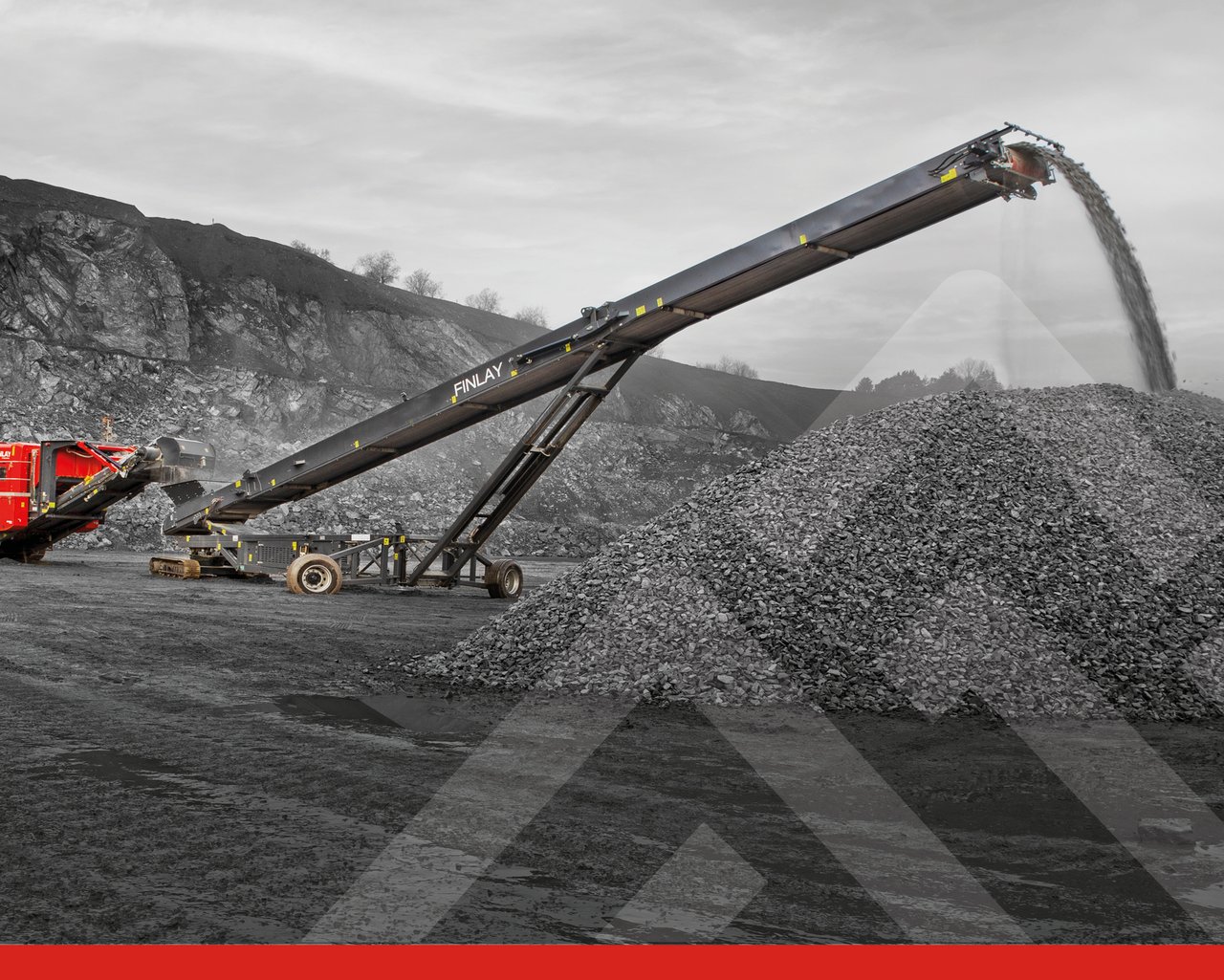

TR-80
The Finlay TR-80 Radial Stockpiling Conveyor is the ideal solution for stockpiling material after mobile crushing and screening plants to build a desegregated stockpile and ensure a consistent quality product. The machine features a 22.82m (74’ 10”) discharge conveyor that has the capacity to transfer up to 600tph (661 US tph) of material.
| Conveyor Length | 22.82m |
| Belt Width | 1050mm |
| Max Discharge Height | 10.75m @ 23° |
| Transport Dimensions | Width: 2.59m Length: 16.29m Height: 3.09m |
| Output Potential | 600tph |

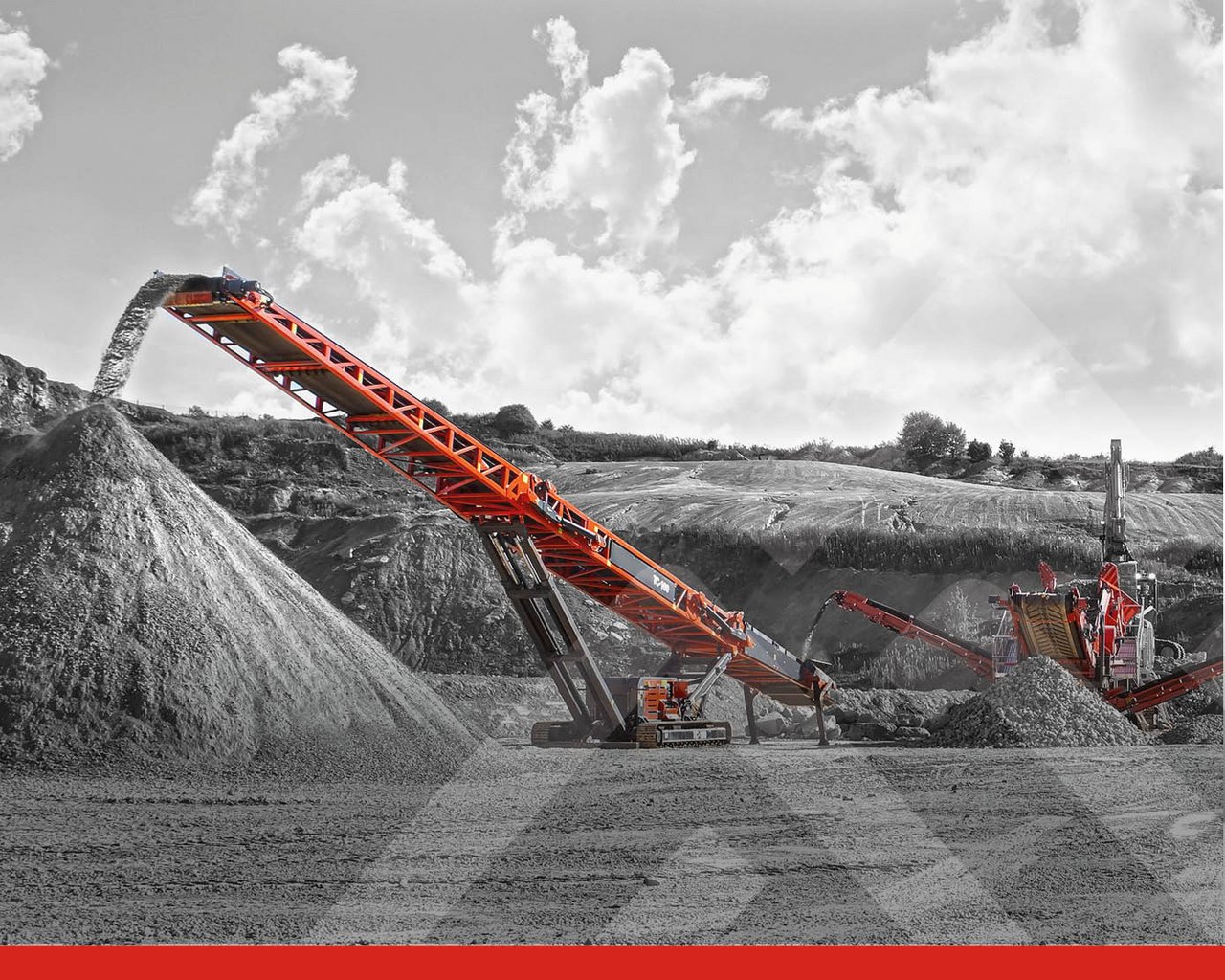

TC-100
The Finlay® TC-100 stockpiling conveyor has been engineered to work in a range of applications, from screening light and fines materials to primary crushing applications. The machine features a 30m (98’ 9”) product conveyor that can produce a maximum conical stockpile capacity based on 37° angle of repose: 6632 tonnes (7310 US ton).
| Conveyor Length | 30m |
| Belt Width | 1050mm |
| Max Discharge Height | 13.1m @ 25° |
| Transport Dimensions | Width: 2.84m Length: 19.5m Height: 3m |
| Output Potential | 600tph |

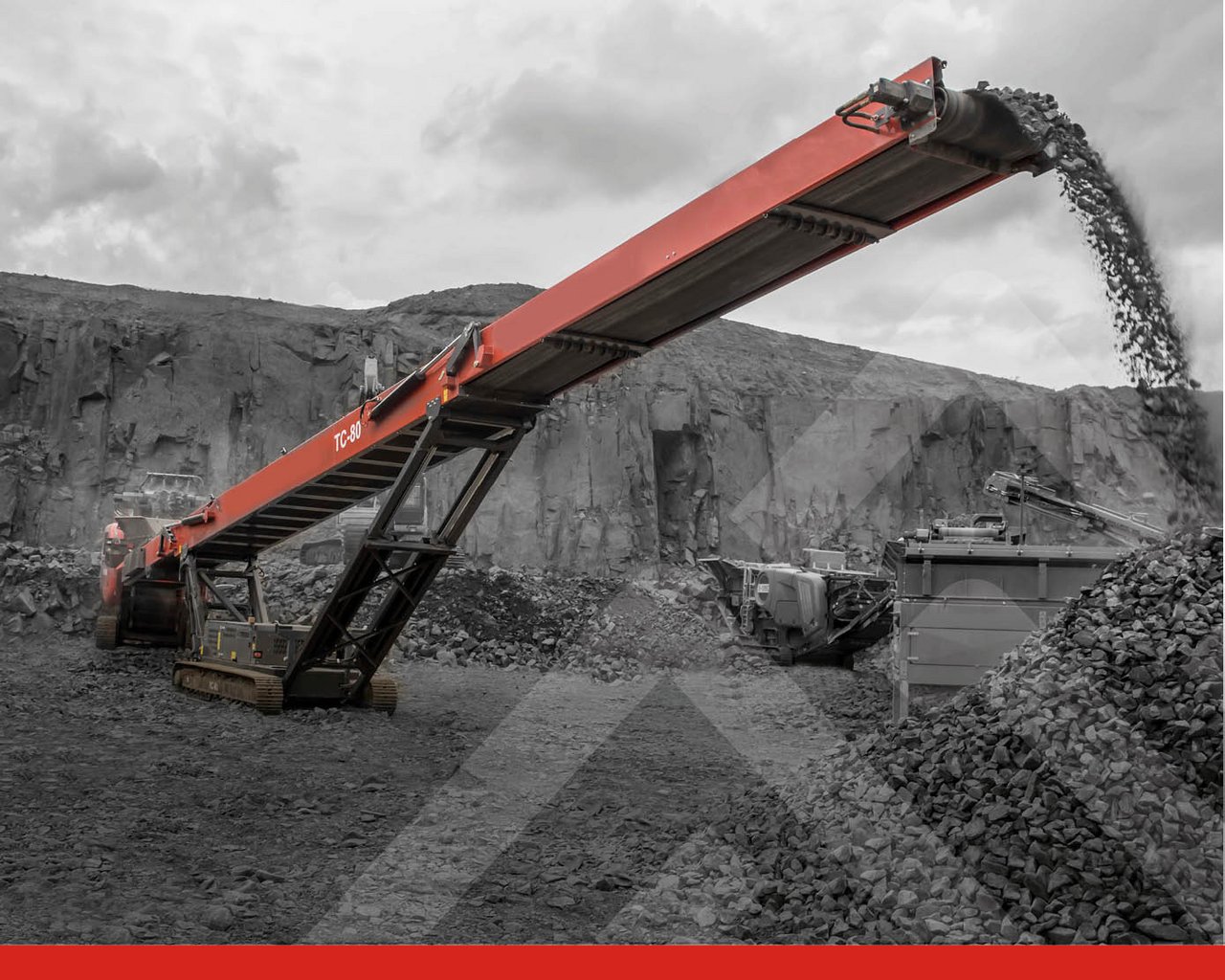

TC-80
The Finlay® TC-80 mobile stockpiler is a highly portable and flexible machine that can be integrated seamlessly into stationary and mobile crushing and screening plants. The machine features a 22.8m (74’ 10”) discharge conveyor that can produce a maximum conical stockpile capacity based on 37° angle of repose: 3228 tonnes (3668 US ton).
| Conveyor Length | 22.8m |
| Belt Width | 1050mm |
| Max Discharge Height | 10.41m @ 25° |
| Transport Dimensions | Width: 2.26m Length: 11.88m Height: 2.54m |
| Output Potential | 500tph |

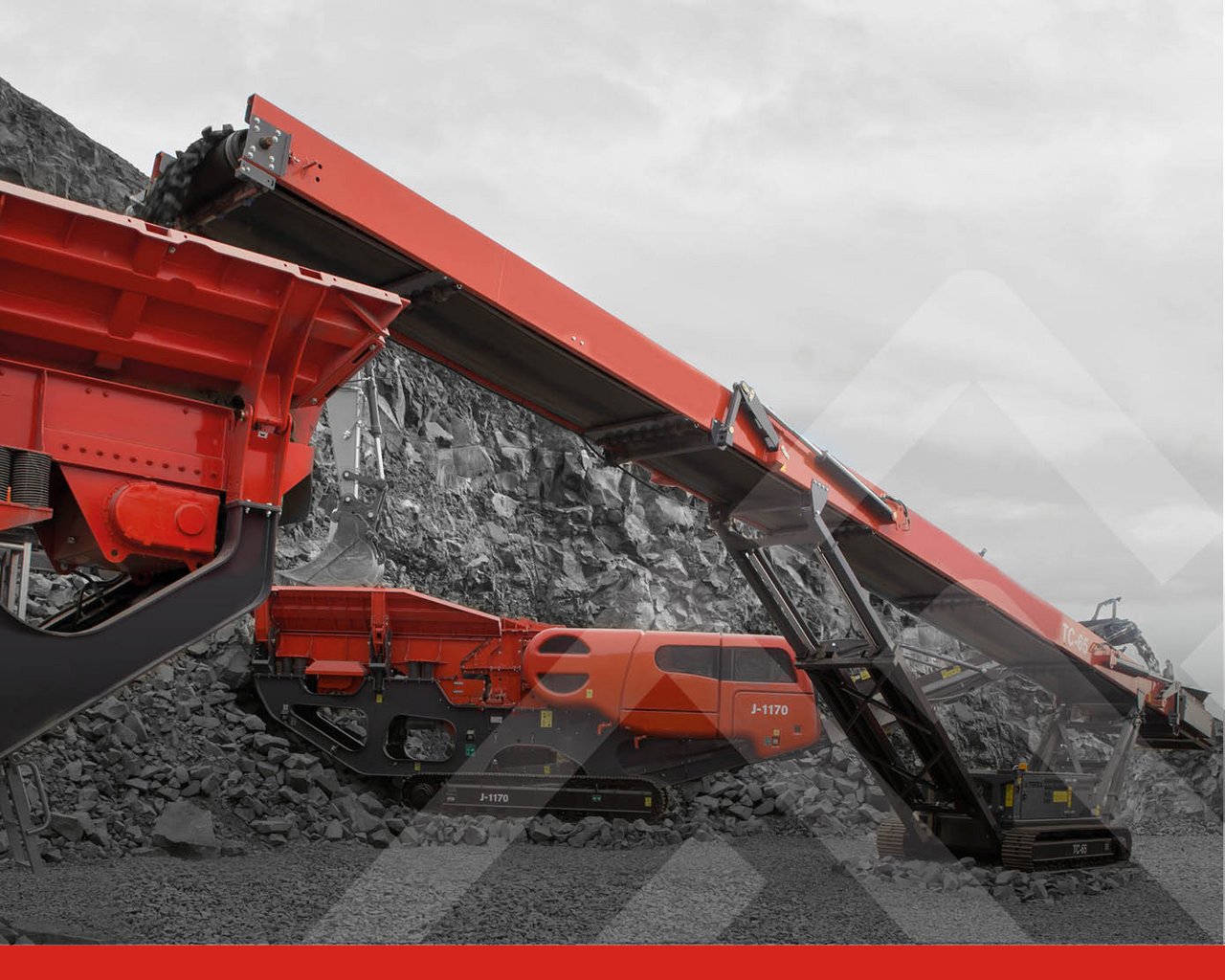

TC-65
The Finlay® TC-65 tracked stacker is a highly portable and flexible machine that can be integrated seamlessly into stationary and mobile crushing and screening plants. The machine features a 19.79m (64’ 11”) product conveyor that can produce a maximum conical stockpile capacity based on 37° angle of repose: 2500 tonnes (2755 US ton).
| Conveyor Length | 19.79m |
| Belt Width | 1050mm |
| Max Discharge Height | 9.45m @ 28° |
| Transport Dimensions | Width: 2.26m Length: 11.33m Height: 2.53m |
| Output Potential | 500tph |

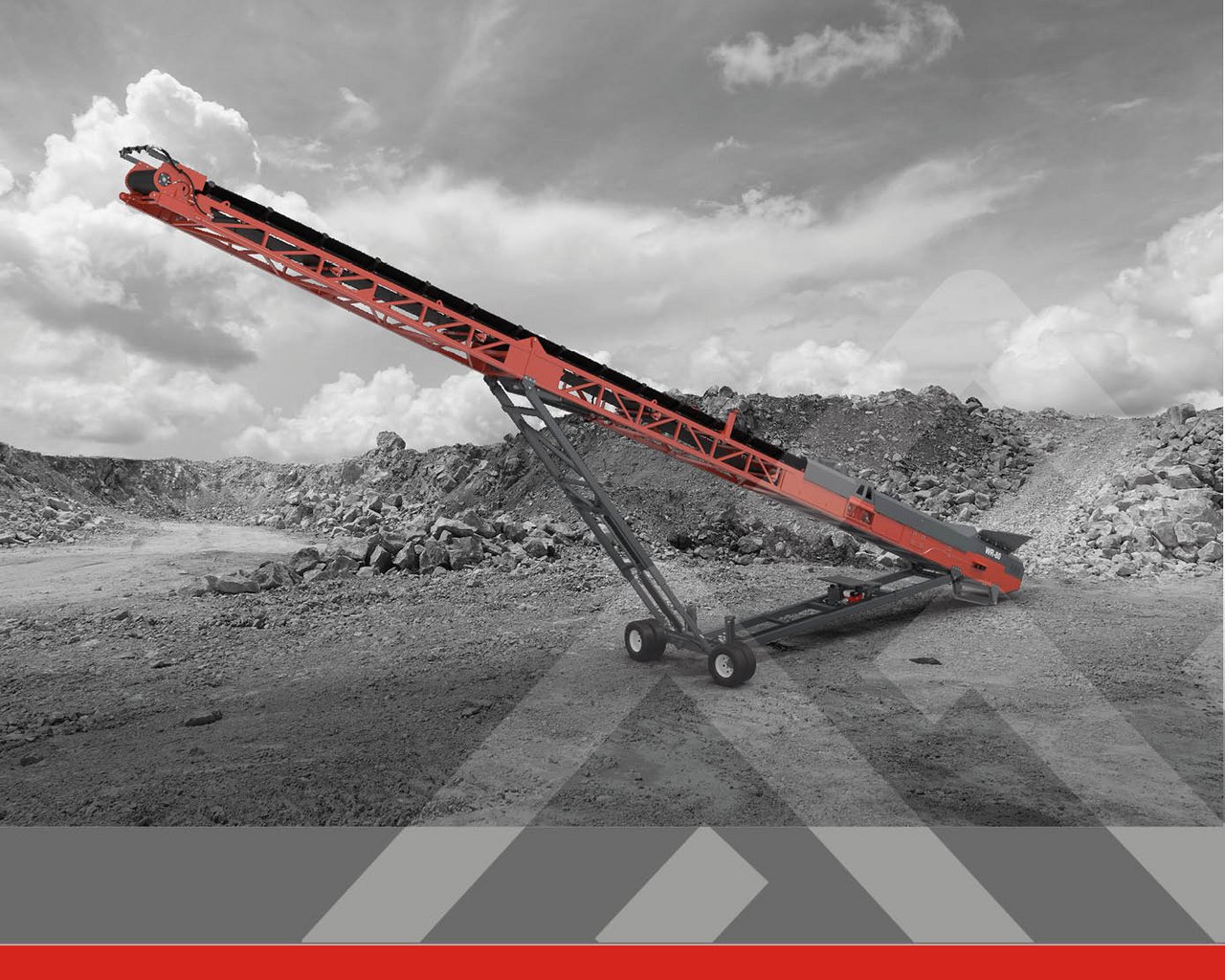

WR-80
The Finlay® WR-80 wheeled radial conveyor is essential for producers who want to produce a consistent quality product and reduce segregation, degradation, compaction and contamination of material in the stockpile. The machine features a 22.85m (74’ 10”) discharge conveyor that has the capacity to transfer up to 300tph (330 US Tph) of material.
| Conveyor Length | 22.85m |
| Belt Width | 900mm |
| Max Discharge Height | 9.2m |
| Transport Dimensions | Width: 4.48m Length: 22.85m Height: 9.95m |
| Output Potential | 300tph |

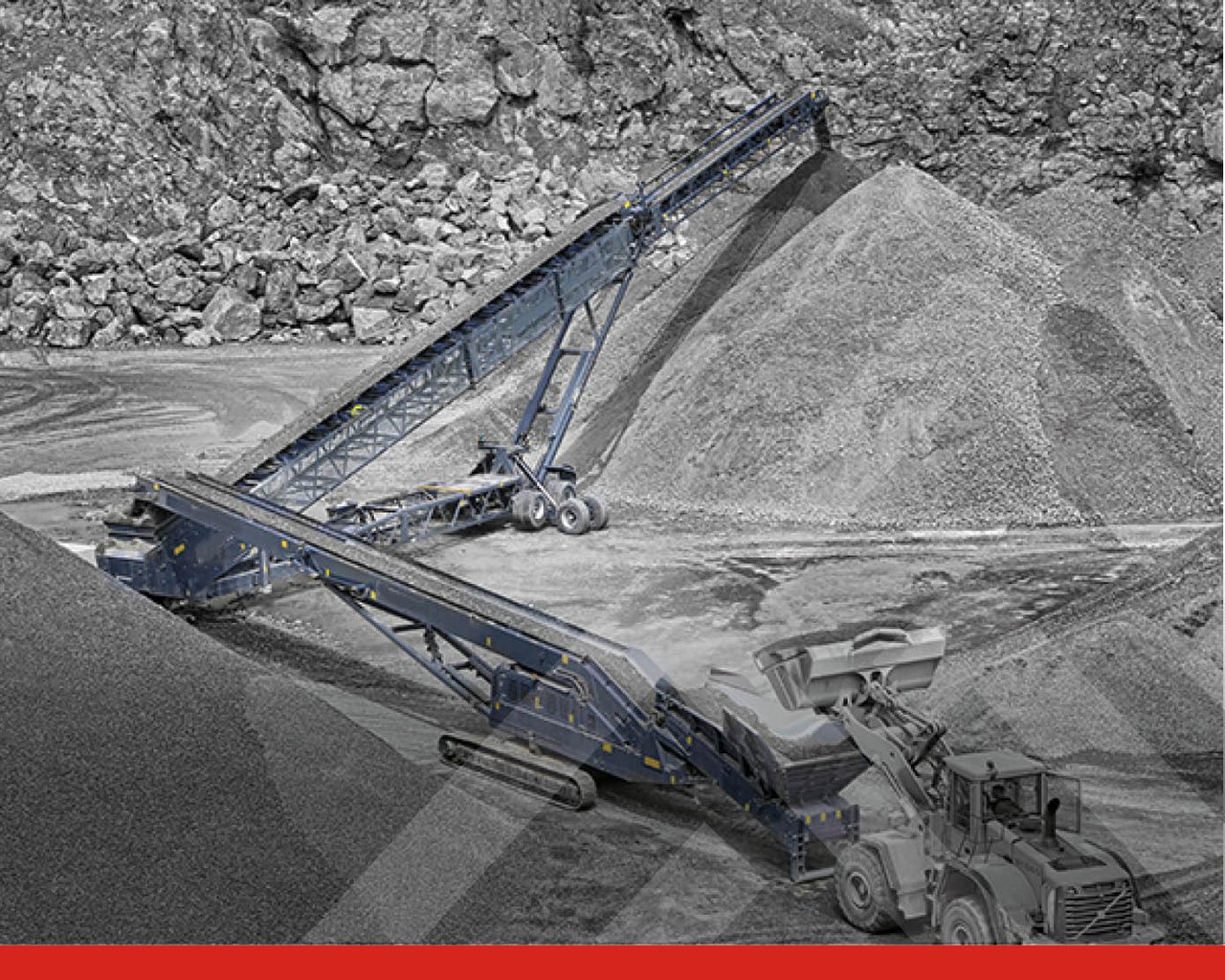

RT-140
The Finlay® RT-140 telescopic conveyor is essential for producers who want to produce a consistent quality product and reduce segregation, degradation, compaction and contamination of material in the stockpile. The machine features a 42.45m (139’ 3”) discharge conveyor that has the capacity to transfer up to 600tph of material.
| Conveyor Length | 42m |
| Belt Width | 900mm |
| Max Discharge Height | 14.6m |
| Transport Dimensions | Width: 3.45m Length: 27.4m Height: 4.1m |
| Output Potential | 600tph |
