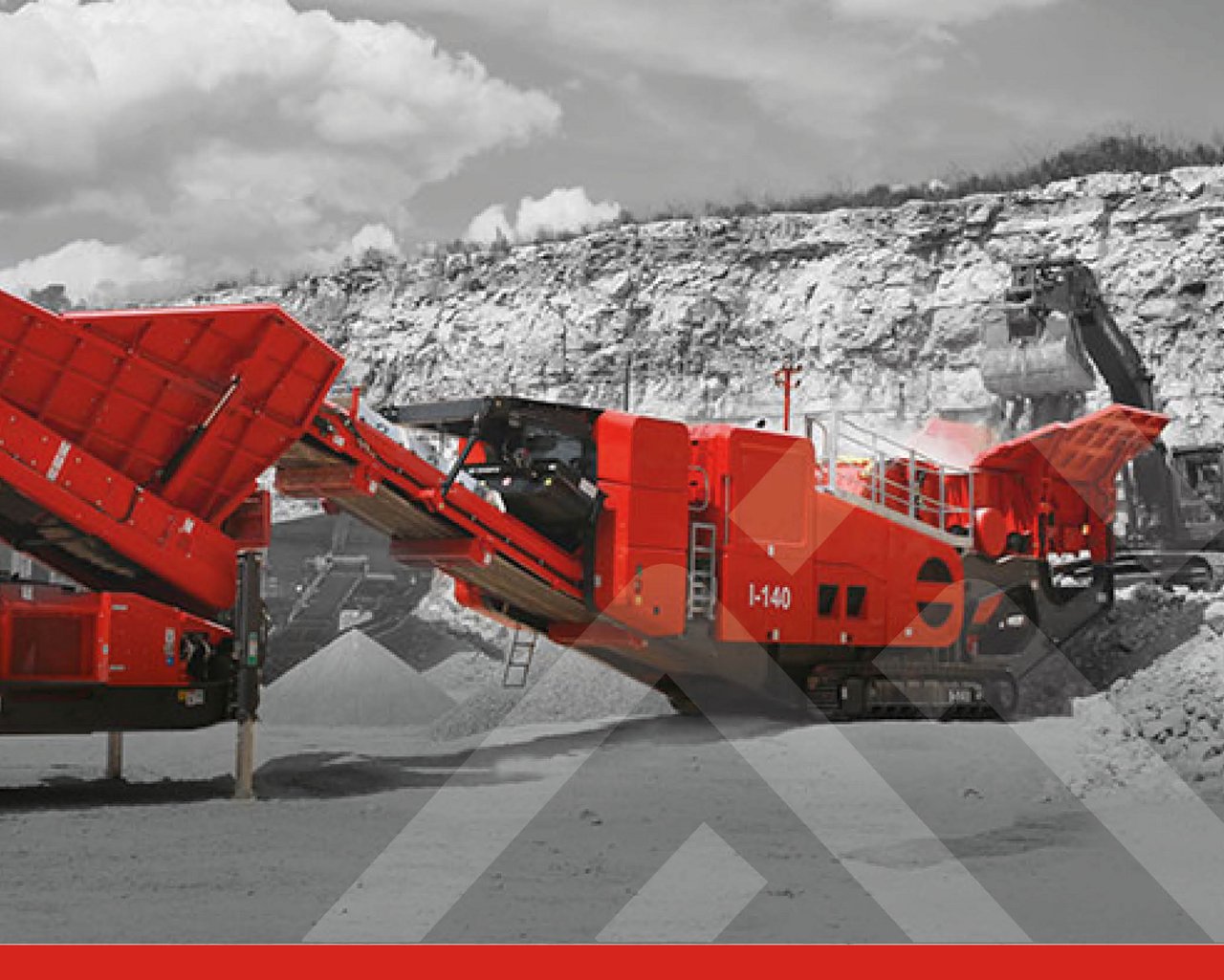

I-140

The Finlay® I-140 tracked impact crusher has an advanced technological design that gives improved material flow through the machine to produce precisely shaped cubical end products in quarrying, mining, demolition and recycling applications. The high productivity, ease of maintenance and operation makes the machine an ideal solution for large scale producers and contact crushing operators. The machine is built around a robust direct drive Finlay® CR032 Ø1270mm x 1220mm (Ø50” x 48”) impact chamber crusher.

Specification

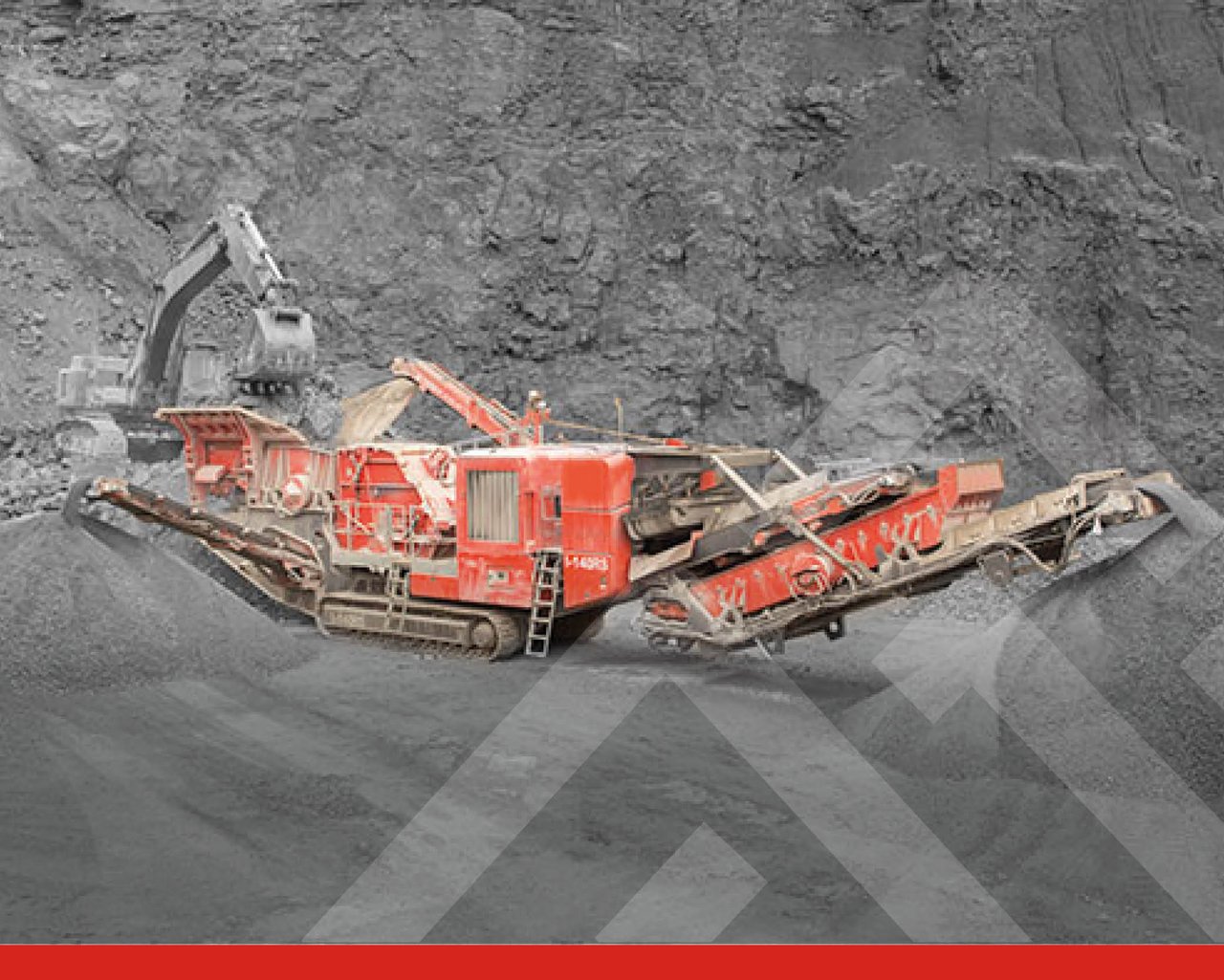

I-140RS

The Finlay® I-140RS mobile impactor provides the flexibility of a tracked impact crushing and screening plant on one machine. The key component is the on-board detachable 4.8m x 1.5m (16’ x 5’) single deck screen. For applications not requiring recirculation of materials for further processing or stockpiling the complete screening and recirculating system can be quickly detached from the machine. The recirculating conveyor can be rotated from closed loop configuration or utilized for stockpiling making an additional oversized product. The machine is built around a robust direct drive Finlay® CR032 Ø1270mm x 1220mm (Ø50” x 48”) impact crusher.

Specification

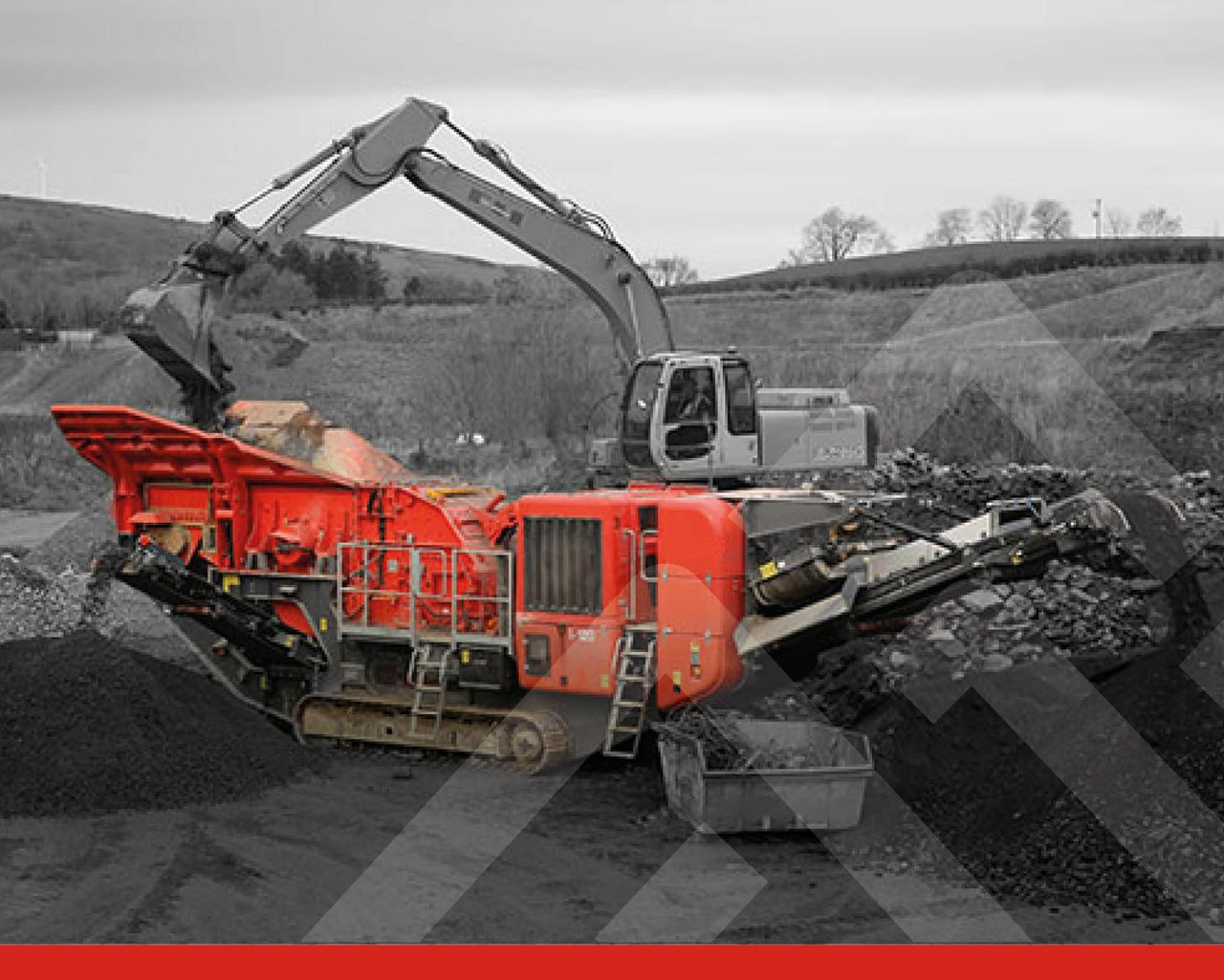

I-120

The Finlay® I-120 is a mid-sized track-mounted mobile impact crusher, commonly used for processing medium to hard natural aggregates and recycling materials such as asphalt, concrete and bricks. For operators in recycling and demolition applications the options of an underpan feeder and auto adjust on the chamber secondary apron are also available for the machine. The machine is built around a robust direct drive Finlay® CR038 Ø1033mm x 1100mm (Ø41” x 44”) impact crusher.

Specification

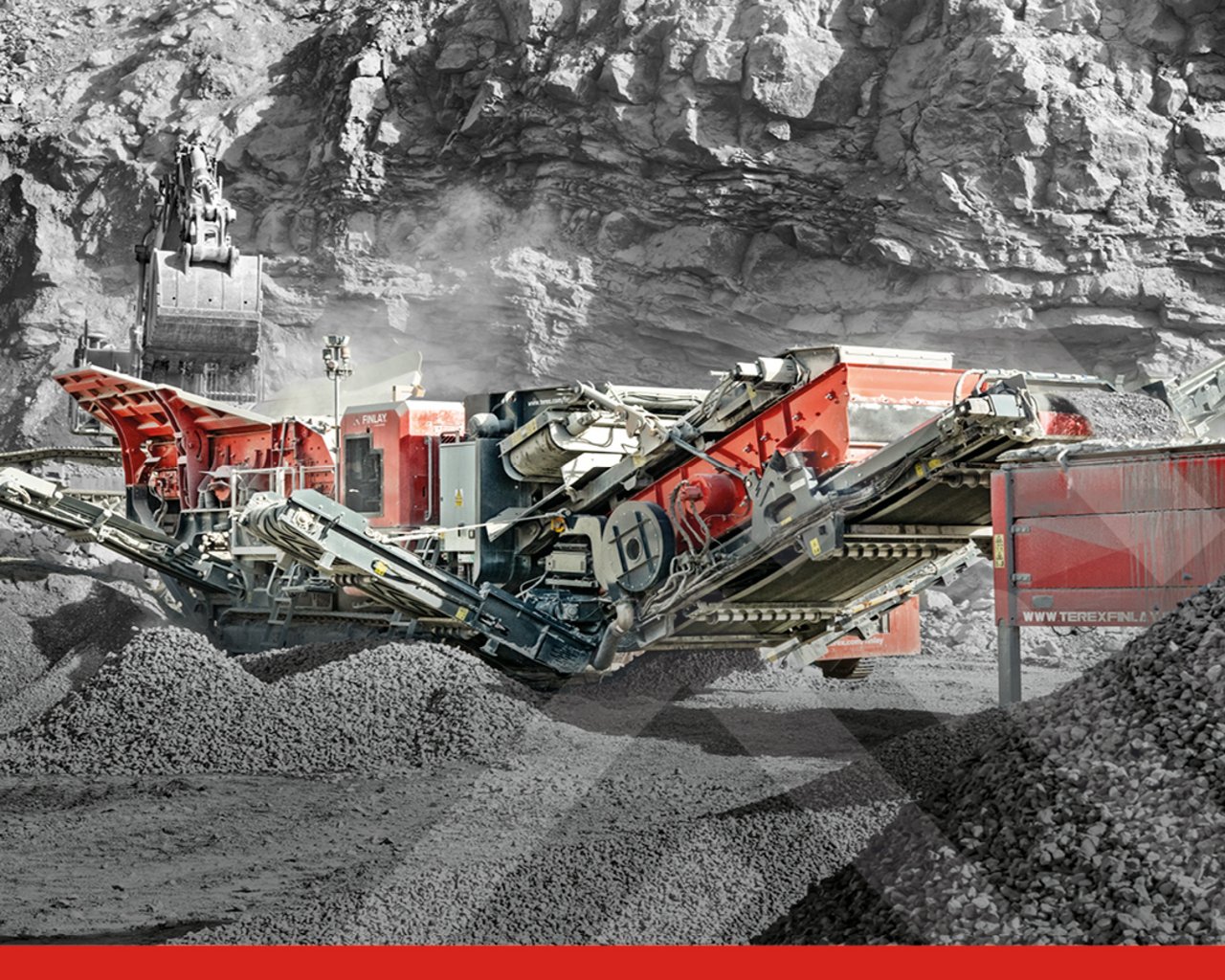

I-120RS

The Finlay® I-120RS provides the flexibility of a portable impact crushing and screening plant on one platform. The on-board innovative quick detach 3.66m x 1.53m (12’ x 5’) two deck screen ensures a quality cubical product. For applications not requiring re-circulation of materials for further processing or stockpiling the complete screening and recirculating system can be quickly detached from the plant. The machine is built around a robust direct drive Finlay® CR038 Ø1033mm x 1100mm (Ø41” x 44”) impact crusher.

Specification

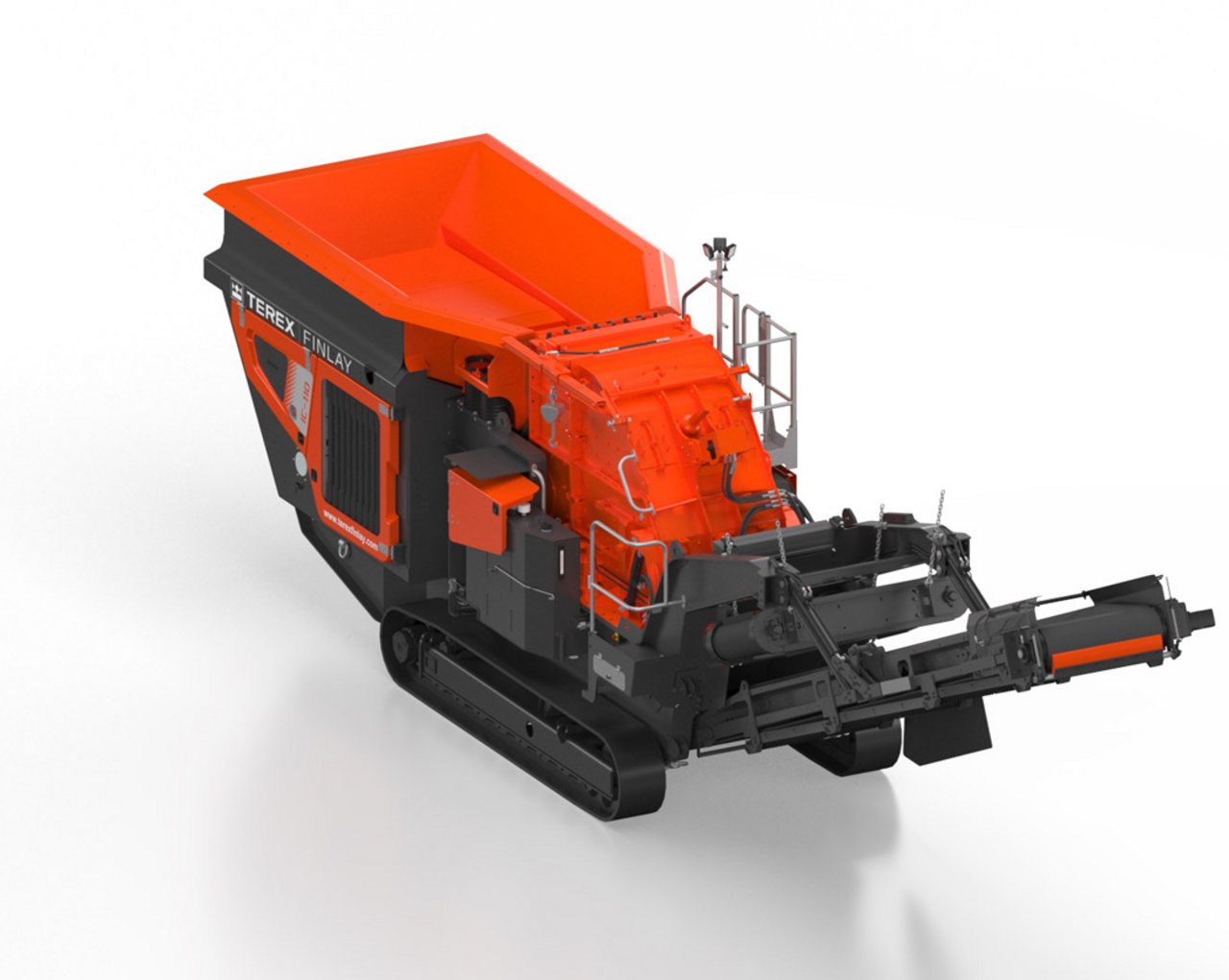

IC-110

The Finlay® IC-110 tracked compact impact crusher has been designed to provide high productivity in quarrying, construction and demolition debris, reinforced concrete and asphalt recycling applications. The impact chamber features variable rotor speed and hydraulic apron setting assist to provide convenient and efficient adjustment of the chamber aprons. It is also fitted with hydraulic overload protection system as standard. The machine is built around a robust direct drive Finlay® Ø1034mm x 1000mm (Ø41.5” x 40”) impact crusher.

Specification

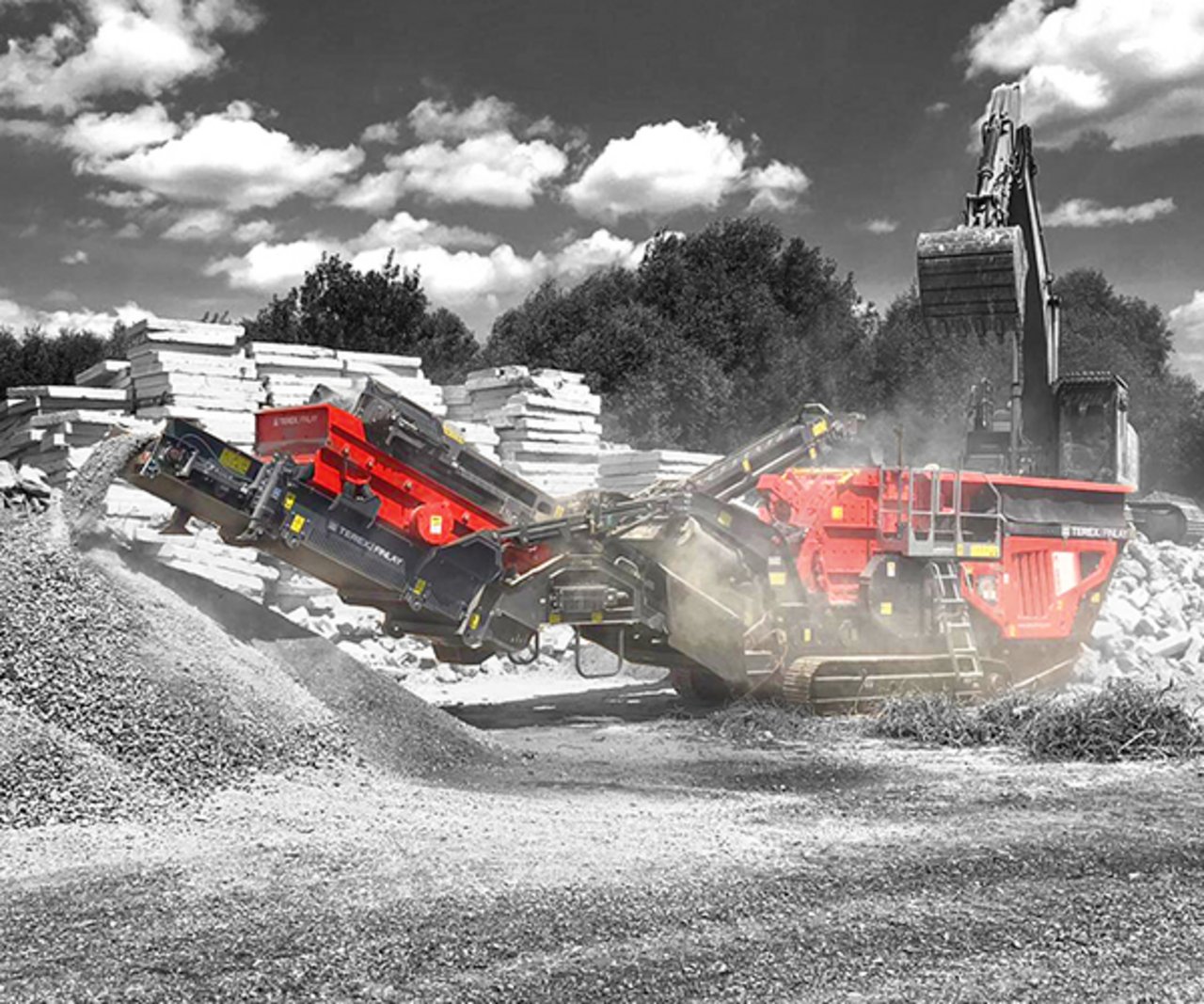

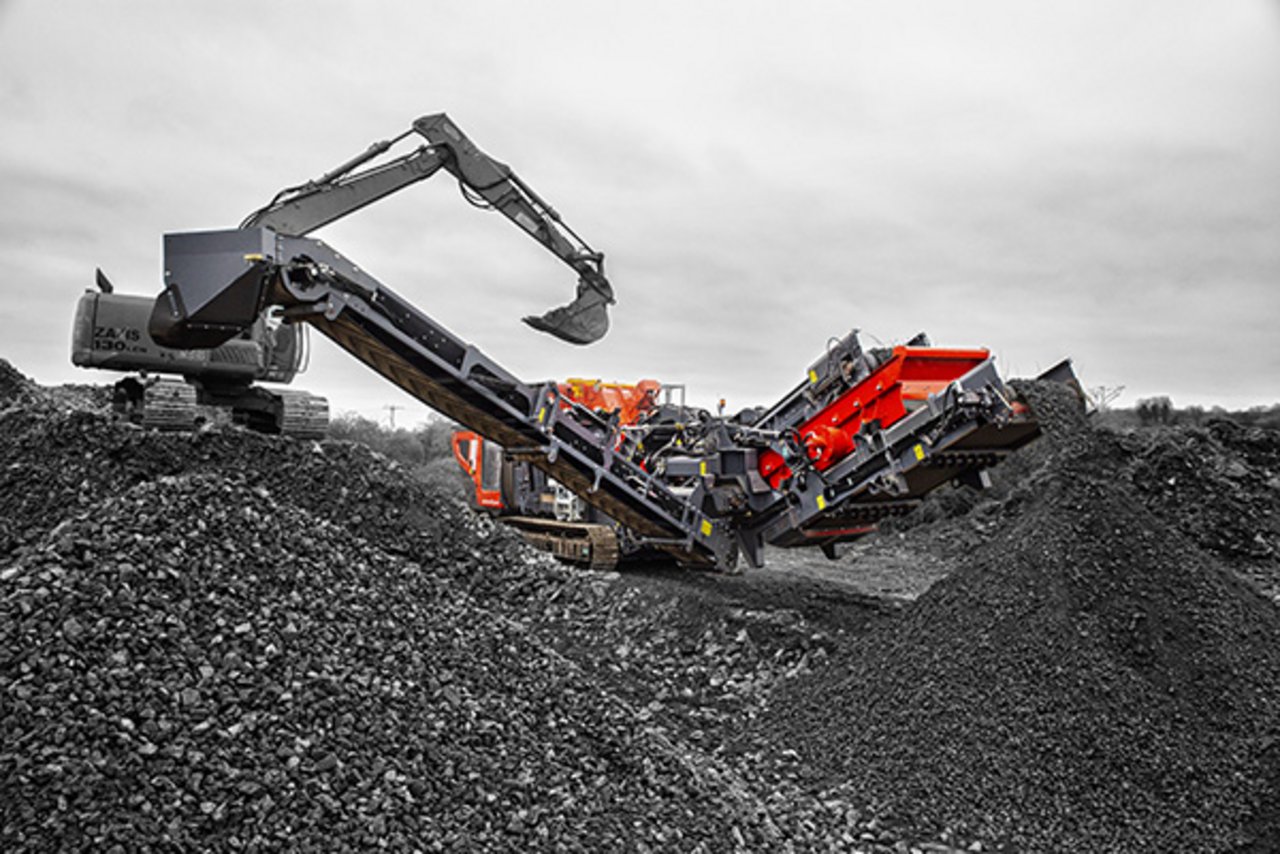

IC-110RS

The Finlay® IC-110RS mobile impactor provides the versatility of a compact crushing and screening plant on one mobile platform for quarrying, construction and demolition debris, reinforced concrete and asphalt recycling applications. A key feature of the machine is the onboard 2.74m x 1.5m (9’ x 5’) single deck screen. For applications not requiring recirculation of oversize material back to the crushing chamber or stockpiling an oversize product the complete screening and recirculating system can be quickly detached from the machine. The machine is built around a robust direct drive Finlay® Ø1034mm x 1000mm (Ø41.5” x 40”) impact crusher.

Specification
