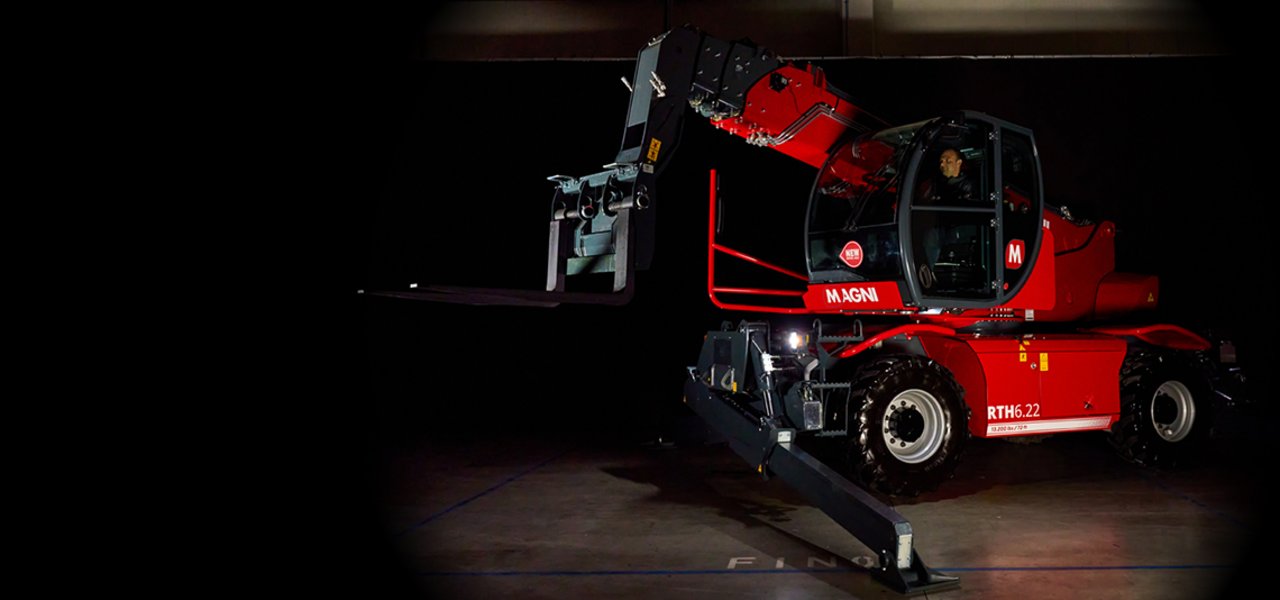

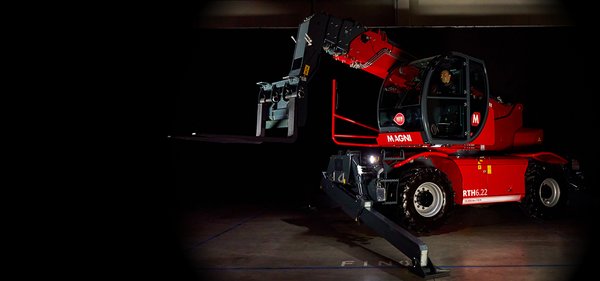

ROTARY TELEHANDLERS (RTH)
A COMBINATION OF RELIABILITY AND FUNCTIONALITY
—
Rotary telehandlers are extremely versatile machines. They are used for many different purposes and can be equipped with various accessories such as forks, winches or a personnel lift.
| TOP FEATURES | |
|---|---|
| Large 12" touchscreen | Dynamic Magni LLD load chart with real-time view |
| Automatic tool recognition and lifting chart selection | Wide window surfaces, good visibility from the cab |
| Automatic levelling of the machine on the support legs | Automatic parking brake as standard |
| Wide range of standard equipment | Wide range of accessories and implements |
| Optional remote control with drive function, allowing the operator to move the handler from outside the cab | |
ROTARY TELEHANDLER MODEL OPTIONS
—
Magni offers the widest range of rotary telehandlers on the market, with the highest lifting capacities. Reach heights start at 18m and go up to 51m. Lifting capacities start at 5,000kg and go up to 13,000kg. Magni's ever-growing range of rotary telehandlers includes a total of 16 different options.

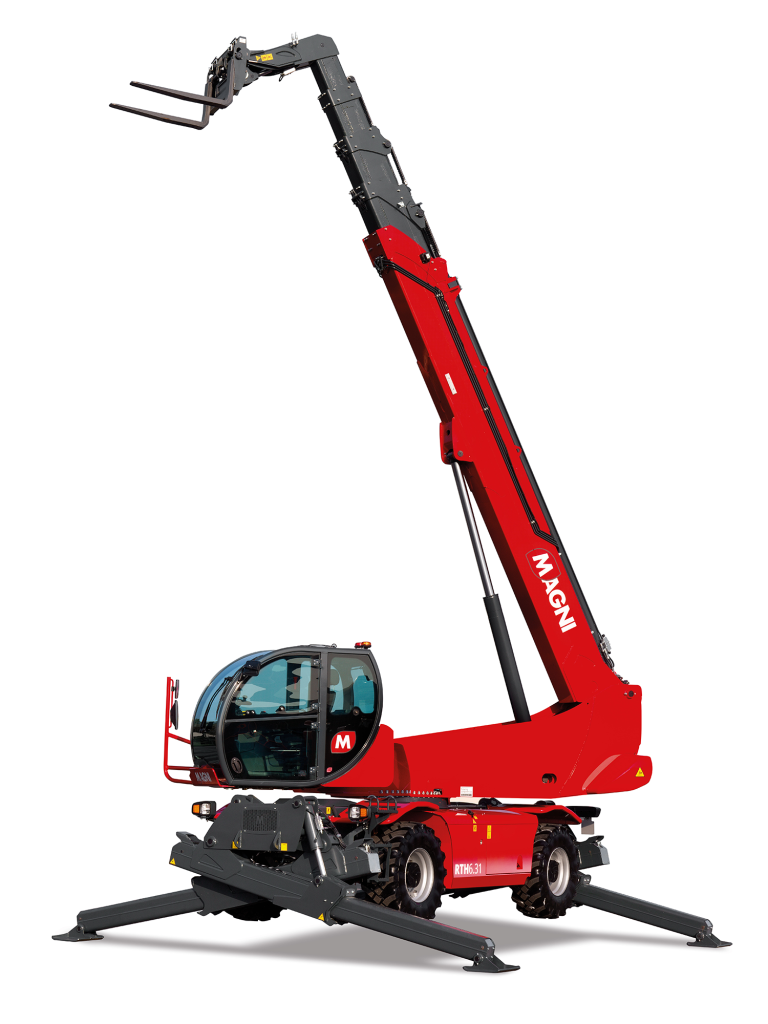

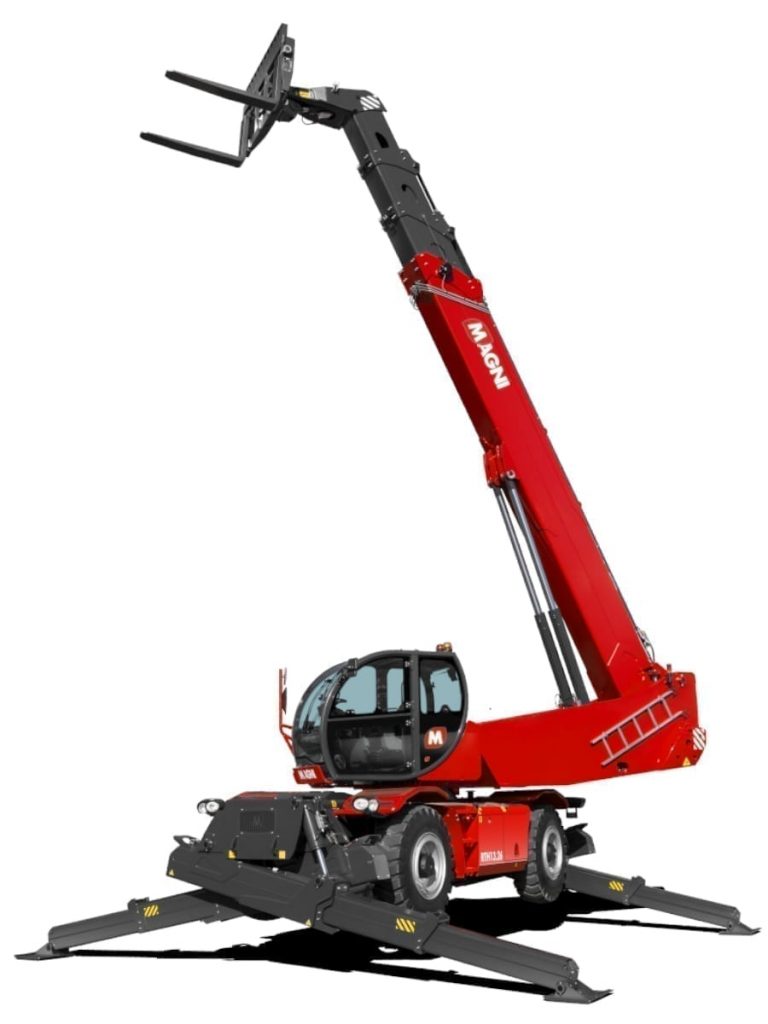

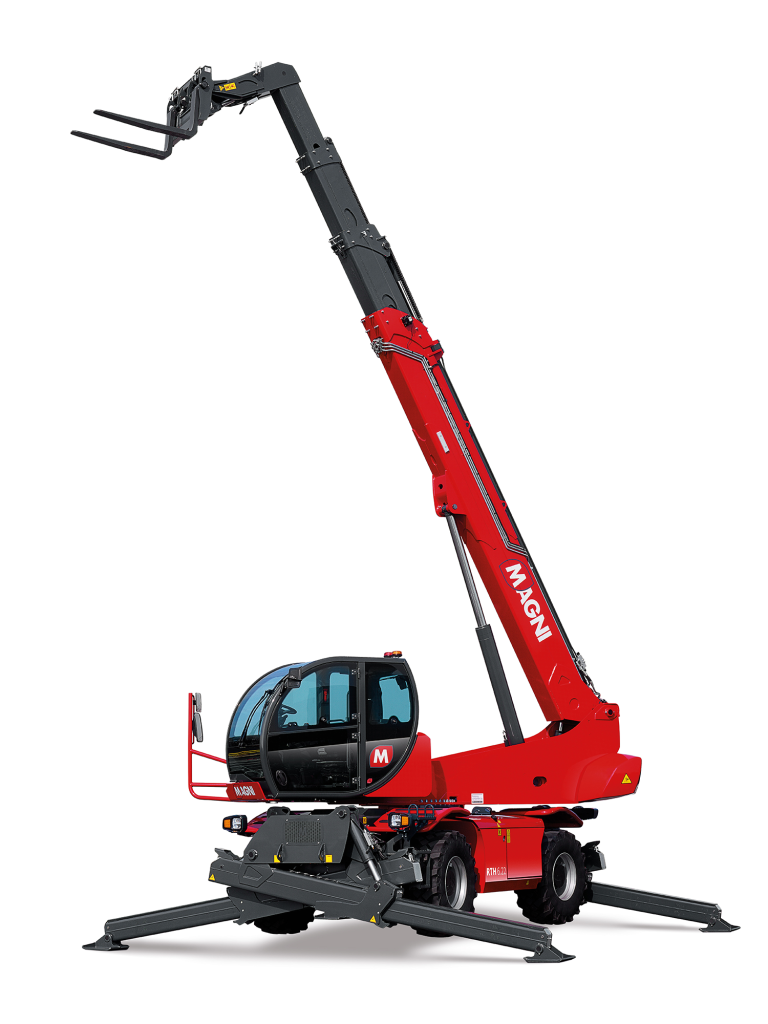

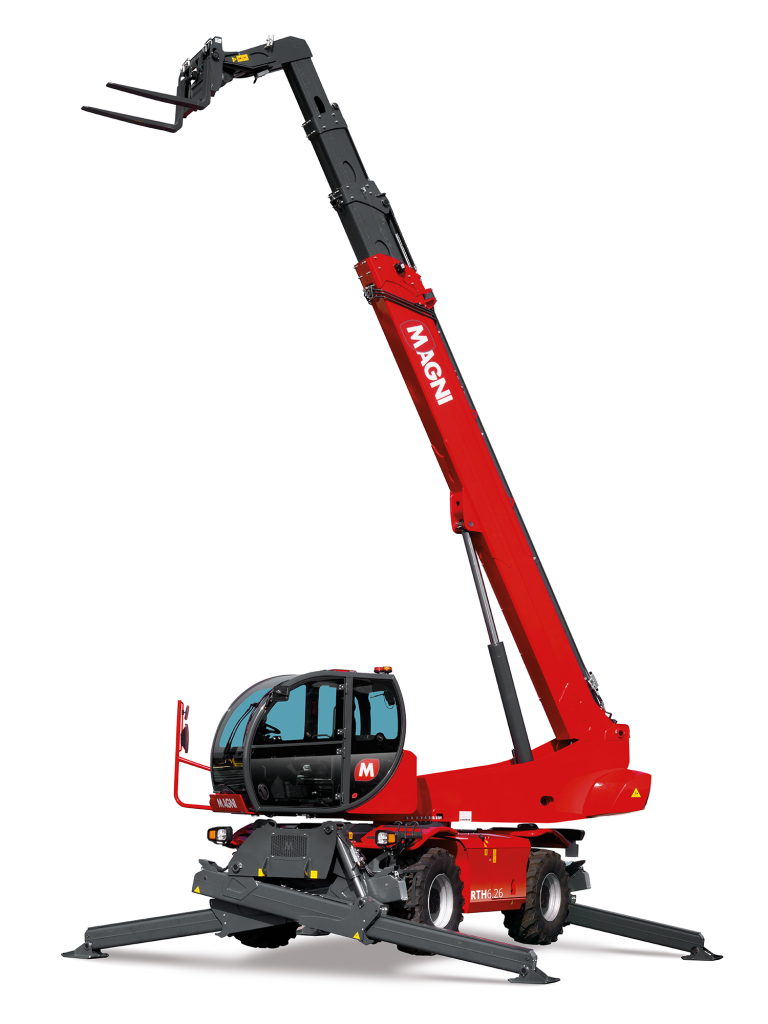

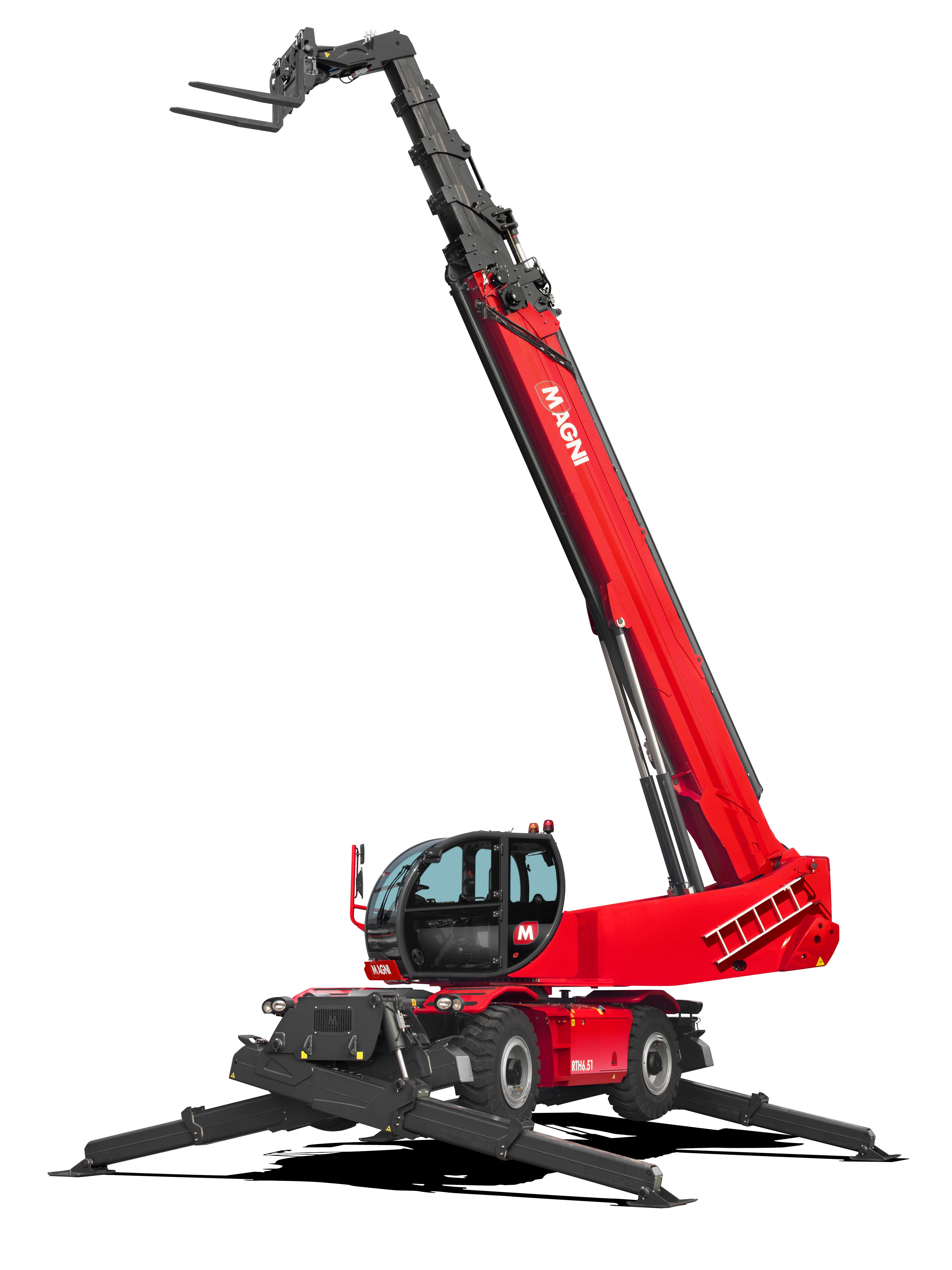

| RTH 6.22 (Specification) | RTH 6.26 (Specification) | RTH 6.31 (Specification) | RTH 6.51 (Specification) | RTH 13.26 (Specification) | |
|---|---|---|---|---|---|
| Unladen weight | 19,000 kg | 19,600 kg | 22,600 kg | 36,300 kg | 30,600 kg |
| Rated power | 100 kW | 100 kW | 160 kW | 175 kW | 175 kW |
| Engine model | Deutz TCD 3,6 L4 Stage V | Deutz TCD 3,6 L4 Stage V | Volvo TAD 582 VE Stage V | Volvo TAD 583 VE - Stage V | Volvo TAD 583 VE - Stage V |
| Max. Height | 22.00 m | 25.80 m | 30.80 m | 51.00 m | 26.20 m |
| Max. Lifting capacity | 6,000 kg | 6,000 kg | 6,000 kg | 6,000 kg | 13,000 kg |
| Max. Reach | 18.50 m | 19.60 m | 26.90 m | 34.50 m | 21.30 m |
| Max. lifting capacity w. max. reach | 1,200 kg | 101 kW | 400 kg | 300 kg | 2,000 kg |
| Max. lifting capacity w. max. lifting height | 4,000 kg | 3,500 kg | 3,000 kg | 2,000 kg | 8,000 kg |
Check the full collection!
—
Browse our product catalogue and see our full range of telehandlers.
RIGHT ATTACHMENTS FOR EACH JOB
—
In addition to the standard comprehensive technology package and high manufacturing quality, an important factor is the wide range of attachments. The range includes, among others.
| Forks |
| Rotating forks |
| Jibs |
| Winches |
| Buckets |
| Hooks |
| Platforms |
MYMAGNI REMOTE MONITORING SYSTEM
—
The MyMagni remote monitoring system helps you manage your machines. The app gives you a complete overview to monitor your machines and you can see the most important things on your own screen. You can monitor error codes on the machine's CAN bus and track active events on the machine. Get access to machine reports and maintenance. MyMagni is installed on every machine and for three years you can take full advantage and discover its potential, as the fee is included in the price of the machine. At the end of this period, you can decide whether you want to continue your subscription with Trackunit or discontinue it.
REDUCED MAINTENANCE COSTS
—
An EasyService contract offers your telehandler scheduled maintenance at a fixed price. No nasty surprises, as the service includes all the materials and labour needed for maintenance. You will only receive a service invoice for your machine when the work is done. You can concentrate on your business, because Avesco will service your machine professionally and on time for you.
EXTENDED EQUIPMENT PROTECTION
—
You can buy an extended warranty for your Magni handler. Choose from several options for your guarantee, and the duration of the contract in years/hours of use, to define the level of protection you need.
For more information please contact our representativeS:
| Estonia +372 679 9260 | info.ee@avesco-cat.com | Latvia +371 2 570 17 11 | info.lv@avesco-cat.com |
