Feeders
Finlay® feeders have been developed as a comprehensive range of robust, reliable and efficient bulk material handling and stockpiling solutions. The range is comprised of High and Low Level Feeders.
Each of our Feeders provides mobility and flexibility in a wide range of free flowing bulk material applications including aggregates, ores, coal, wood chips, pellets, fertilizers, grains and truck loading. Each model has been designed for moving or stockpiling material efficiently and productively whilst minimizing operator and other associated on-site costs.
TF-75H
The Finlay TF-75H high level feeder has been designed to maximize productivity and improve efficiency by reducing double handling and on-site operational costs in a wide range of applications and feed material types. The machine features a 22.5m (73’ 10”) product conveyor to give a maximum stockpile capacity based on 37° angle of repose: 2776 tonnes (3060 US ton).
| Conveyor Length | 22.5m |
| Belt Width | 1.2m |
| Max Discharge Height | 9.8m @ 24° |
| Transport Dimensions | Width: 2.75m Length: 19.5m Height: 3.12m |
| Output Potential | 600tph |

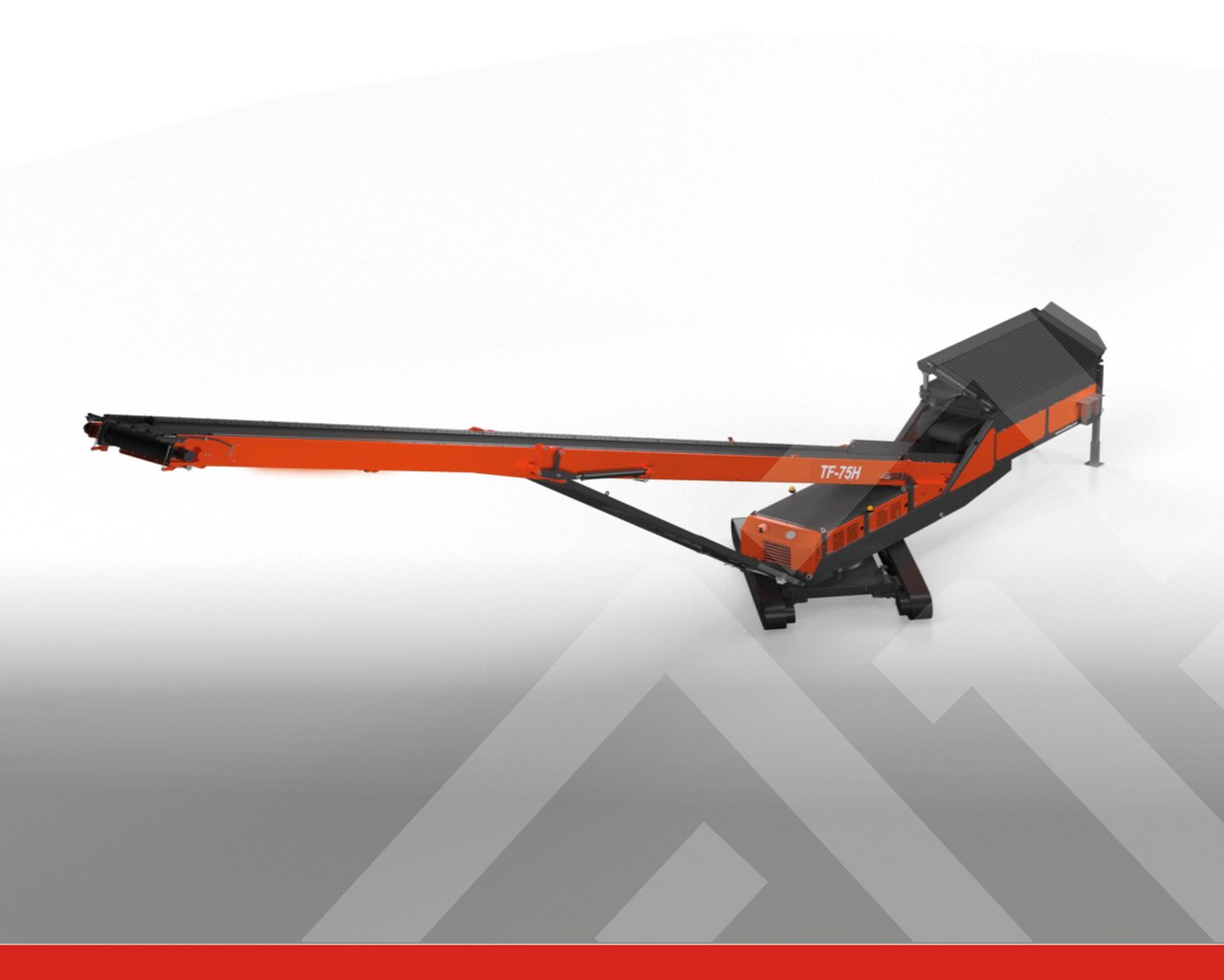

TF-75H Orbital
The Finlay® TF-75H high level orbital feeder has been designed to maximize productivity and improve efficiency by reducing double handling and on-site operational costs in a wide range of applications and feed material types. The machine is available with an orbital centre mounted slew bearing that enables 360° rotation and movement of the hopper/feeder to enhance on site mobility.
| Conveyor Length | 22.5m |
| Belt Width | 1.2m |
| Max Discharge Height | 10.7m @ 24° |
| Transport Dimensions | Width: 3.2m Length: 19.5m Height: 3.63m |
| Output Potential | 600tph |

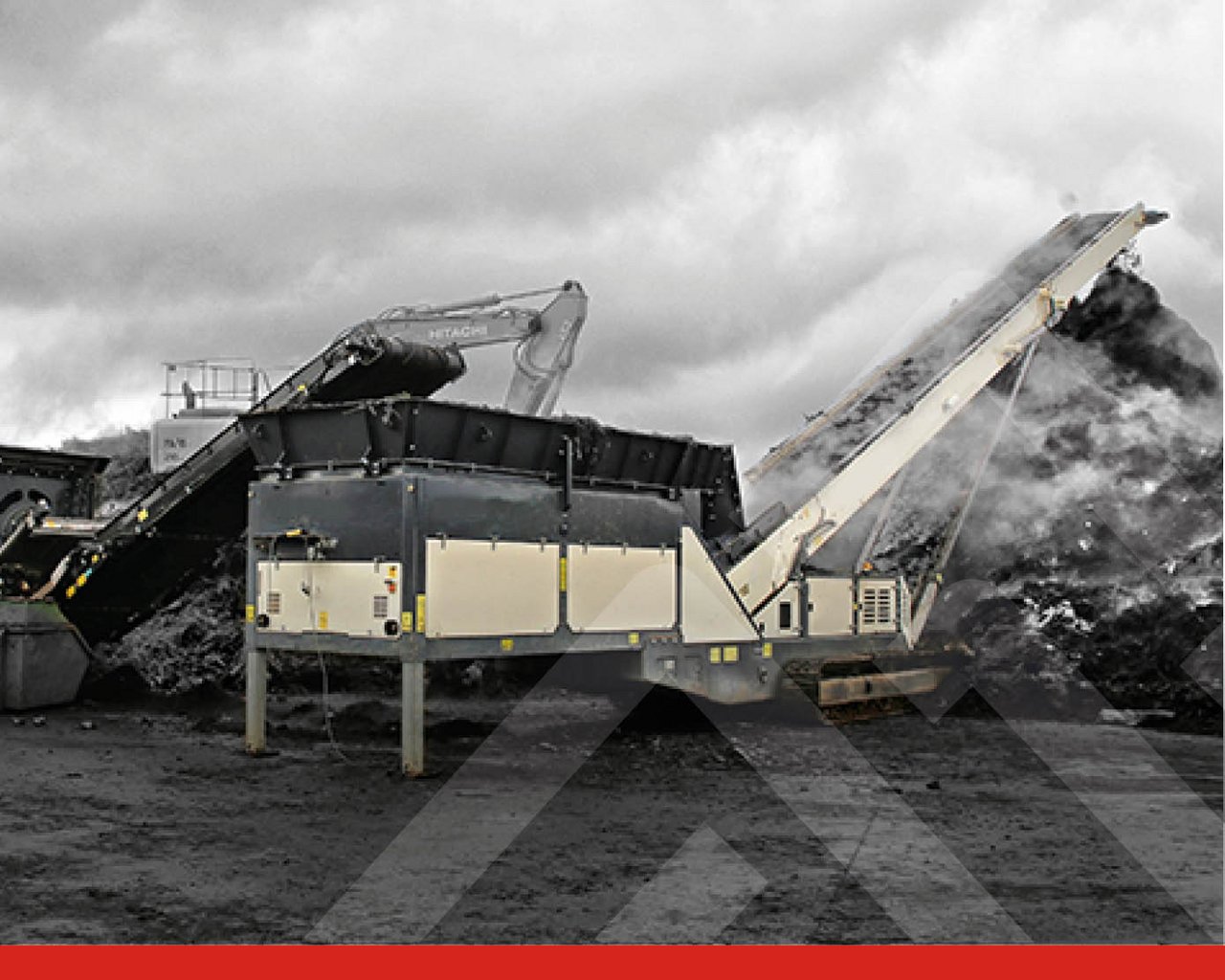

TF-75H Organics
The Finlay® TF-75H Organics High Level Feeder has been engineered specifically for the stockpiling and aerating of lower density, bulky materials such as soils, mulch, biomass, green waste and compost. The hopper feeder has steep side walls and features adjustable feed belt speed to ensure a controlled and efficient flow of material transfer to the transfer conveyor.
| Conveyor Length | 22.6m |
| Belt Width | 1.2m |
| Max Discharge Height | 8m @ 18° |
| Transport Dimensions | Width: 2.75m Length: 19.4m Height: 3.07m |
| Output Potential | 600tph |

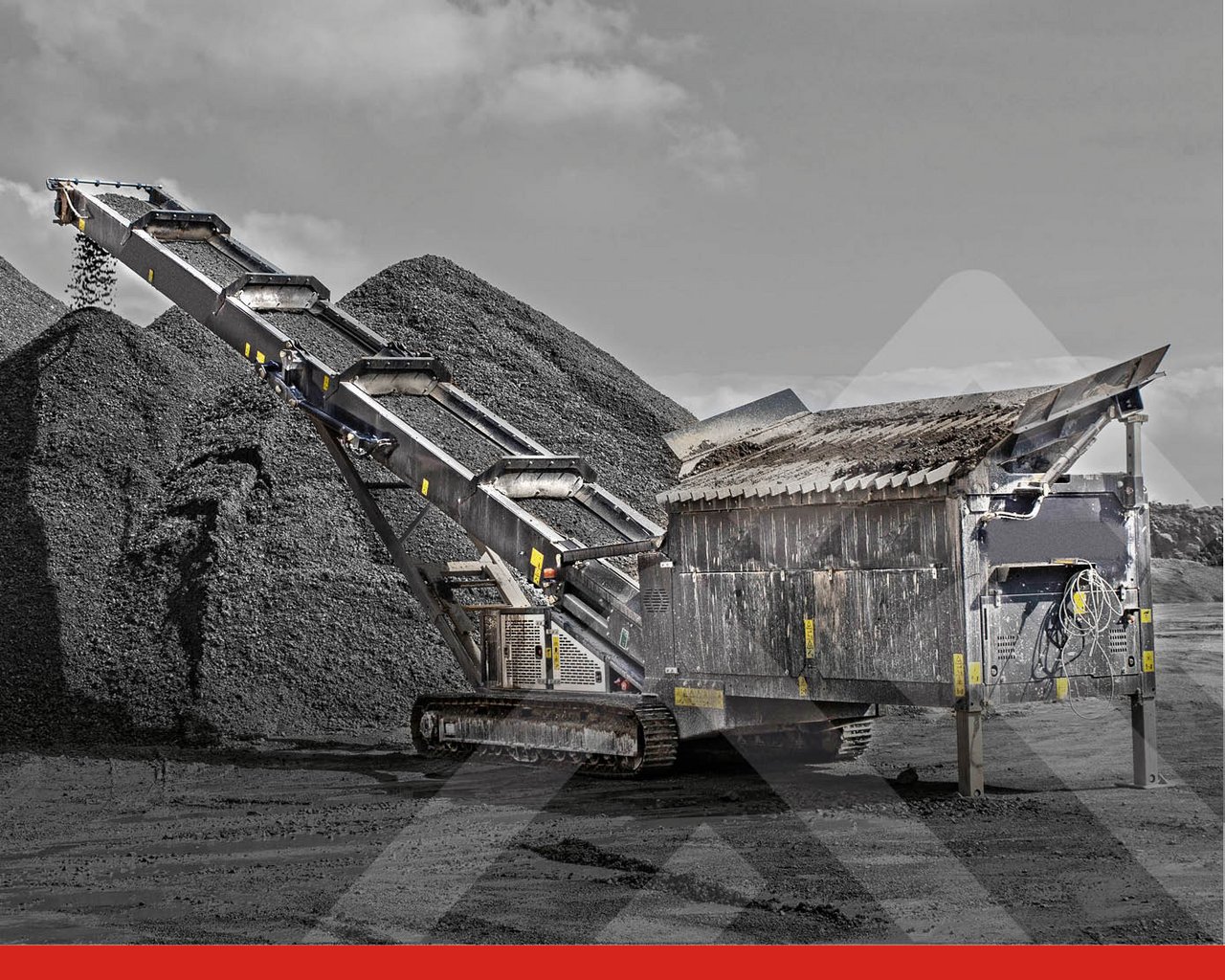

TF-50H
The Finlay® TF-50H high level feeder has been designed to maximize productivity and improve efficiency by reducing double handling and on site operational costs in a wide range of applications and feed material types.
| Belt Width | 1.05m |
| Max Discharge Height | 7.2m |
| Transport Dimensions | Width: 2.29m Length: 12.16m Height: 2.55m |
| Output Potential | 450tph |

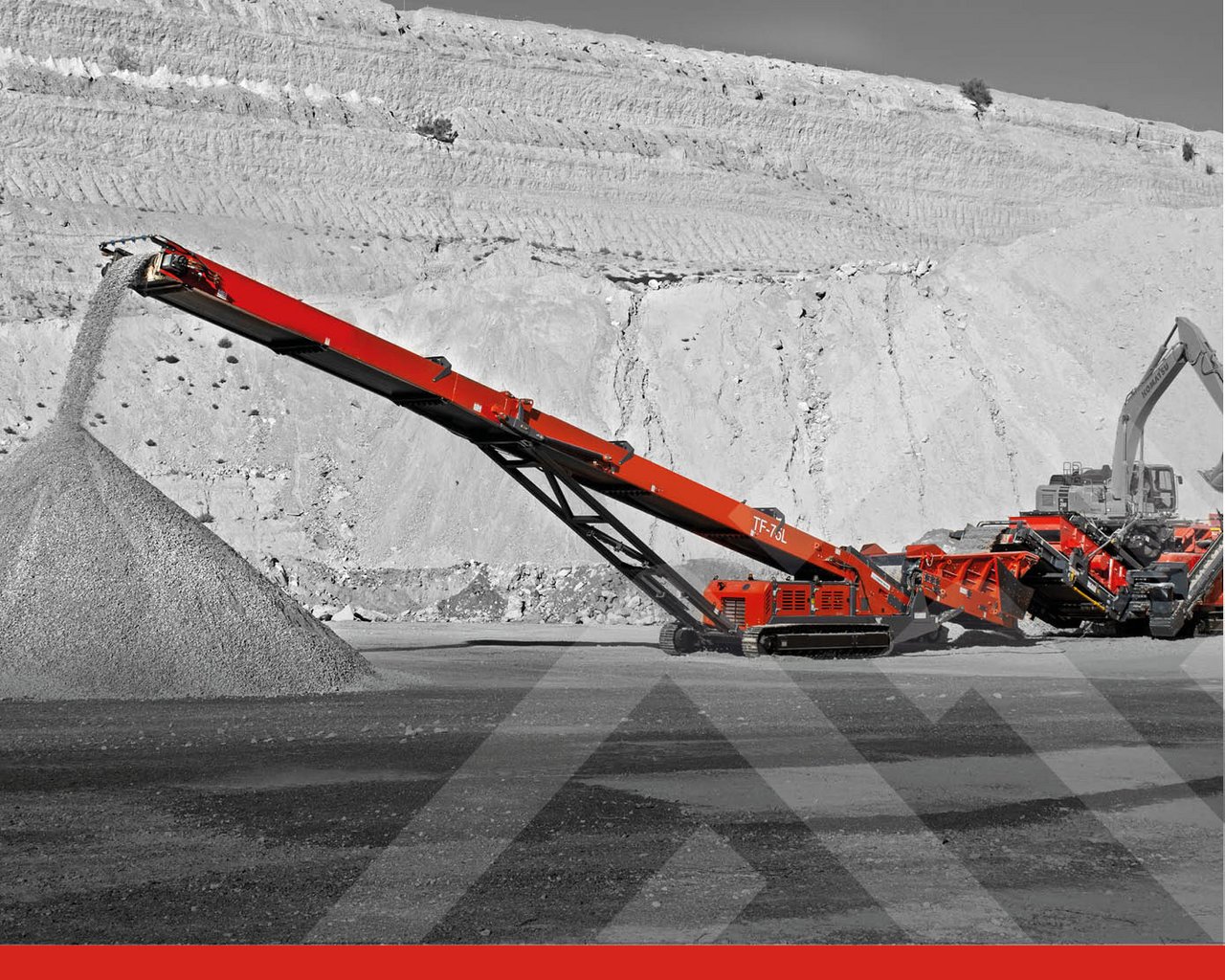

TF-75L
The Terex® Finlay TF-75L low level feeder has been designed to maximize productivity and improve efficiency by reducing double handling and on-site operational costs in a wide range of applications and feed material types. The machine features a 22.5m (73’ 10”) product conveyor to give a maximum stockpile capacity based on 37° angle of repose: 2776 tonnes (3060 US ton).
| Conveyor Length | 22.6m |
| Belt Width | 1.2m |
| Max Discharge Height | 9.8m @ 24° |
| Transport Dimensions | Width: 2.75m Length: 19.74m Height: 3.35m |
| Output Potential | 600tph |

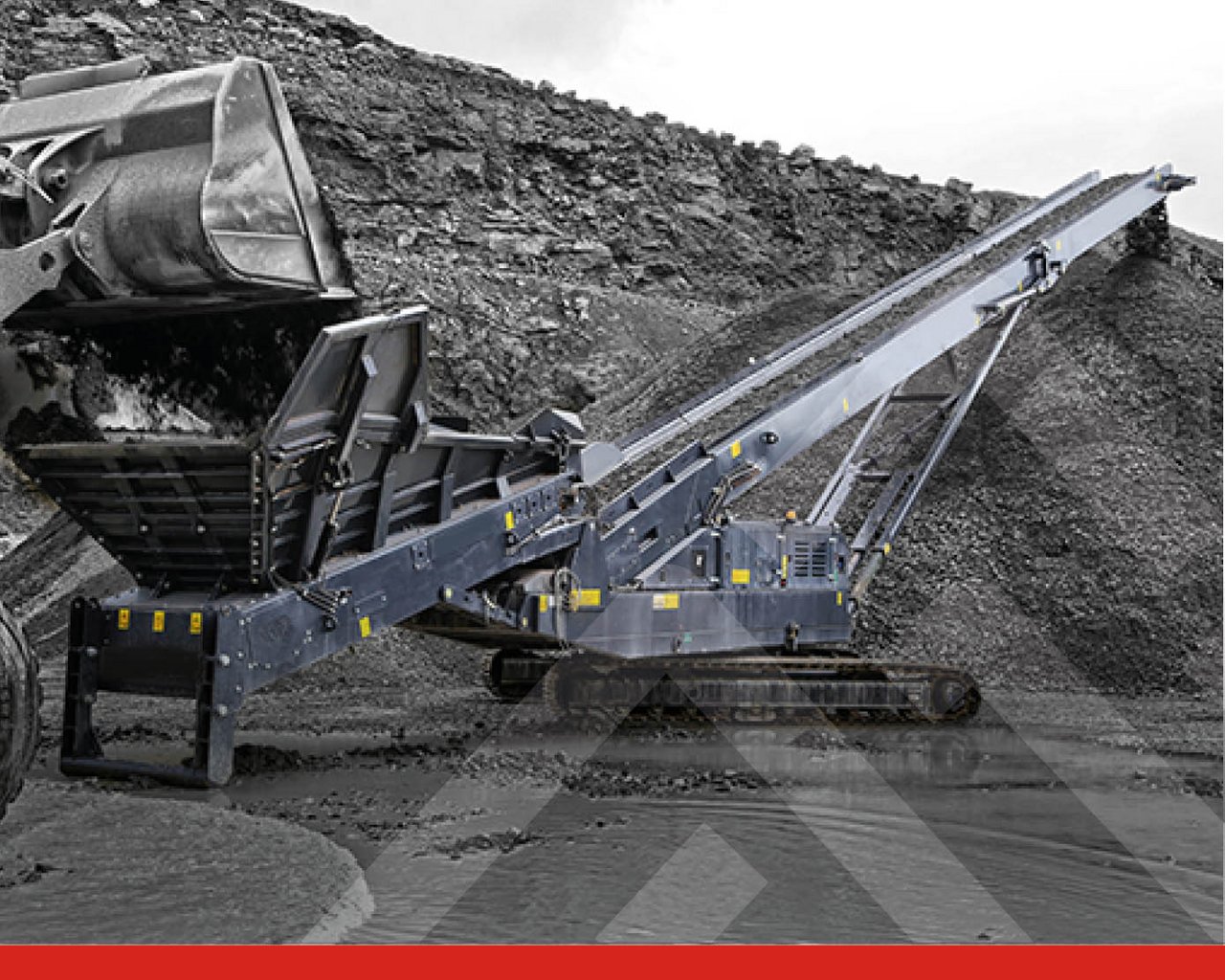

TF-75L Orbital
The Finlay® TF-75L low level feeder features a 7m3 (9.2yds3) hopper with a feed in height of 1900mm (6’ 3”) and width of 3500mm (11’ 5”) to enable low level feeding directly from excavators, grab cranes, and wheel loaders compared to standard high level feeders. The machine features a 22.5m (73’ 10”) product conveyor to give a maximum stockpile capacity based on 37° angle of repose: 2776 tonnes (3060 US ton)
| Conveyor Length | 22.5m |
| Belt Width | 1.2m |
| Max Discharge Height | 10.7m |
| Transport Dimensions | Width: 3.2m Length: 19.5m Height: 3.63m |
| Output Potential | 600tph |

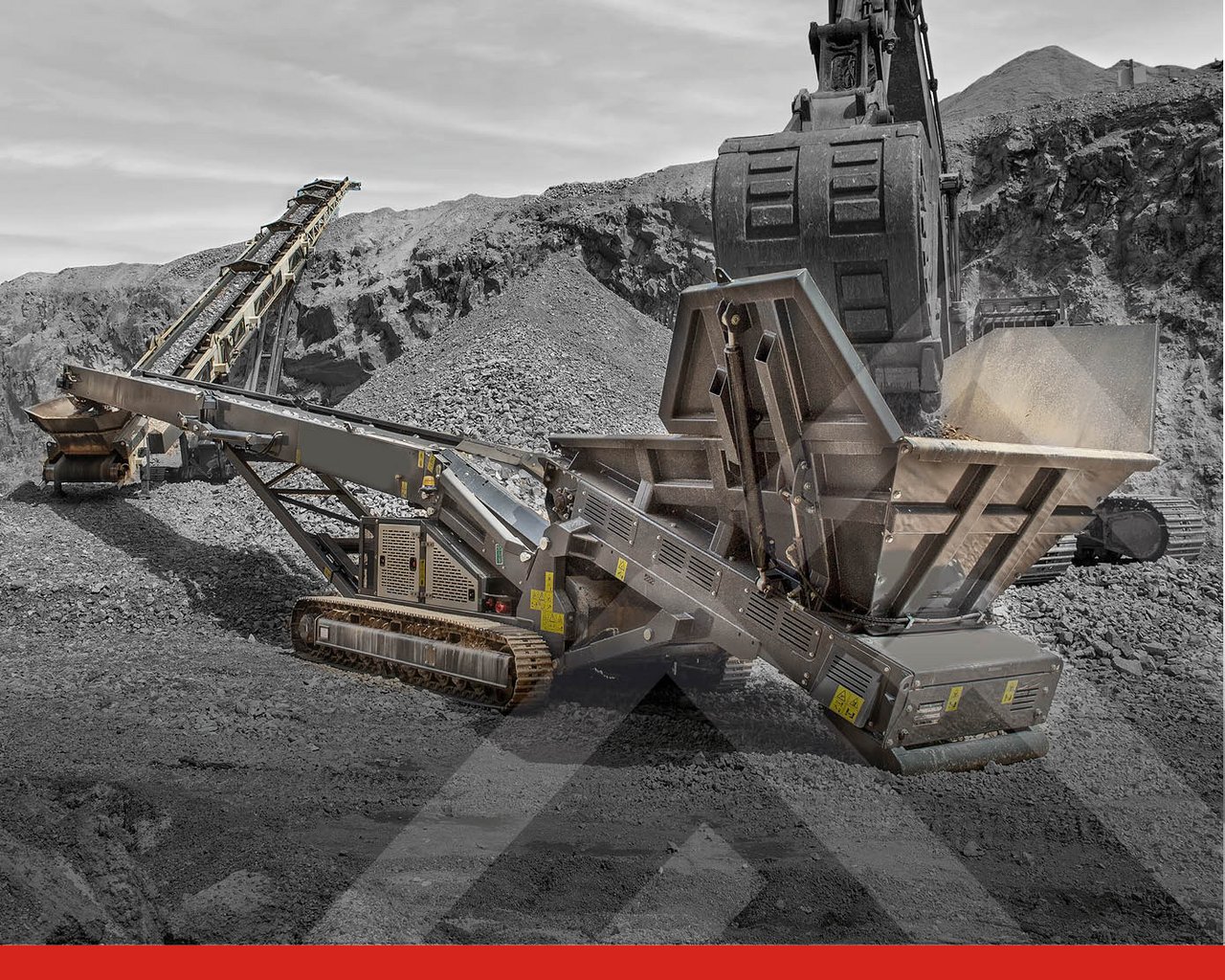

TF-50L
The Finlay® TF-50L low level feeder has been designed to maximize productivity and improve efficiency by reducing double handling and on-site operational costs in a wide range of applications and feed material types. The machine features a 15.6m (51’ 2”) discharge conveyor to give a maximum stockpile capacity based on 37° angle of repose: 932 tonnes (1027 US tonnes).
| Conveyor Length | 15.6m |
| Belt Width | 1.05m |
| Max Discharge Height | 7.2m |
| Transport Dimensions | Width: 2.77m Length: 12.2m Height: 2.55m |
| Output Potential | 450tph |
