8 - 10 TONNES CAT® MINI EXCAVATORS

Optimum value of performance, operator experience, serviceability and affordability

 BENEFITS

4 Industry First Features
Cat Exclusives
in a Mini Excavator
Up to 10% Lower
Total Ownership Costs

with improved fuel efficiency
and longer service intervals
Up to 20%
More Performance

with customizable operator settings
and improvements in lift, swing, travel and multifunction

8-10 TONNES CAT® MINI EXCAVATORS MODELS

­Cat 308 CR

Engine Power (ISO 14396):
55,4 kW (74,3 PH)

Transportation weight:
8400 kg

Maximum hydraulic pump capacity
167 l/min

Hydraulic system pressure
285 bar

Bucket break out force:
62 kN

Stick lifting force
35,7 kN

Digging depth
4643 mm

Specification Request an offer

Cat 309 CR

Engine Power (ISO 14396)
55,4 kW (74,3 HP)

Transportation weight
9565 kg

Maximum hydraulic pump capacity
233 l/min

Hydraulic system pressure
285 bar

Bucket break out force
62 kN

Stick lifting force
35,7 kN

Digging depth
4643 mm

Specification (Standard Undercarriage)

Specification (Long Undercarriage)

Request an offer

Cat 310

Engine Power (ISO 14396)
55,4 kW (74,3 HP)

Transportation weight
10182 kg

Maximum hydraulic pump capacity
233 l/min

Hydraulic system pressure
285 bar

Bucket break out force
77,7 kN

Stick lifting force
49,2 kN

Digging depth
5211 mm

Specification Request an offer


MACHINES AVAILABLE in Baltic Stock

CAT 308 CR
CAT 309 CR
CAT 310
311



LEARN MORE ABOUT 1-2 TON MODELSLEARN MORE ABOUT 2,7 - 3,5 TON MODELSLEARN MORE ABOUT 8 - 6 TON MODELS
CAT 301.6CAT 301.8CAT 302 CRCAT 302.7CAT 303 CRCAT 303.5 CRCAT 304CAT 305 CRCAT 306 CR
443443133


   REQUEST AN OFFER

Whether you have one piece of Cat equipment or an entire fleet, Cat Financial experts are here to partner with you for the life of your business.
With a thorough knowledge of your industry and business needs, we can personalize financial solutions that keep your business moving forward and tailor extended coverage options to meet your heavy equipment needs.


MORE ABOUT CAT FINANCIAL

Unique Features

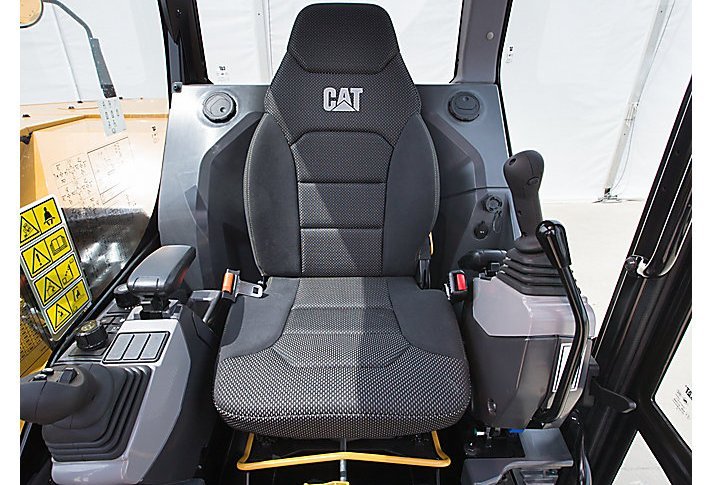

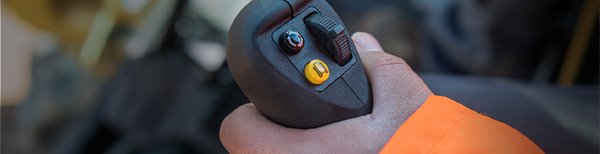

Unique Seat mounted Joystick Controls:

  • By pushing one button You can transfer machine steering control from flour mounted levers to seat mounted left joystick.
  • By selecting dozing seting Yoy can steer machine with left joystick, and control dozer with right joystick.
  • You can use setting to control Boom, Stick and even bucket with right joystick and steer machine with left one.
  • Also by pushing one button You can activate Cruise control function. It allows You to concentrate on such work tools like Flail mover or mulcher control.


Multifunctional Operator Display:

In multifunction display You will find information about machine working parameter, time left until next maintenance. You will be able to change machine settings, control radio. It will help You to bette adjust machine for different type of jobs or working aplications. Each operator will be able to customize the machine to their own needs. As a result You will get better productivity and efficiency. You can navigate the display menu with both the buttons on the screen and the tumbler on the right console.
You can also connect your phone to the machine via the Bluetooth interface and listen to your favorite shows and use the hands free option for calls.


Hydraulic system control modes:

With the help of the multifunction display you can change the following operating parameters of machine hydraulic system:

  • You can choose the operating speed of the hydraulic system from gentle, for high-precision work, to aggressive, for maximum performance.
  • You can select the sensitivity of the control joysticks, which determines how quickly the hydraulic components respond to the movement of the joystick.
  • Both settings can be changed not only for the boom, stick and bucket in general, but also for each tool individually, so each operator will be able to adjust the machine settings to their own needs and priorities.


Dozer Blade:

The option of the "floating" dozer blade will make it easier and more convenient to clean the workplace or displace the excavated soil.


Serviceability:

All the outer parts of the housing are made of steel and are of the simplest possible construction, so if they are damaged, those elements can be easy repaired and new components will cost less in the event of major damage.


Cab:

The cab is designed as a separate module, so it is completely enclosed in construction. For this reason, there is more pressure inside the cab than outside when the machine is running. There is less dust inside the machine, the sound level in the cab is lower and the ventilation system works efficiently. All this gives the operator better working conditions and has a positive effect on productivity.
