950 GC
OVERVIEW
—

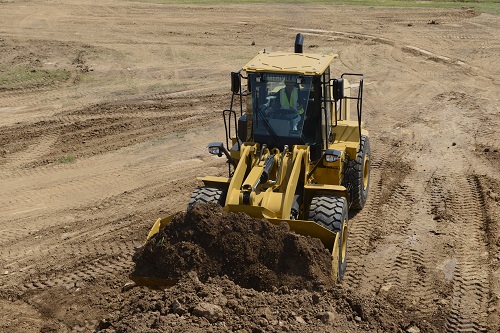

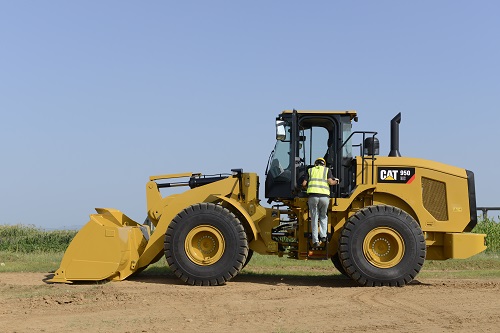

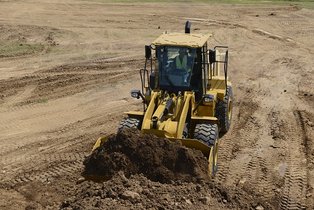

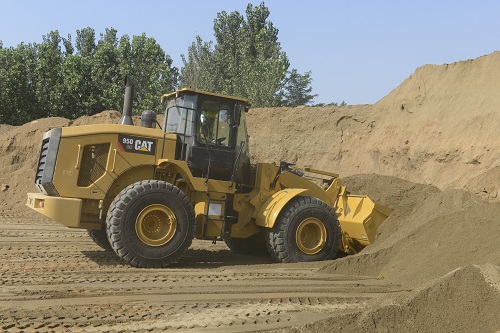

The Cat® 950 GC wheel loader is designed specifically to handle all the jobs on your worksite from material handling and truck loading to general construction and stockpiling. Great machine performance combined with the low owning and operating costs makes the 950 GC the right choice for your business.
LOW OWNING COST PER HOUR ENGINE IDLE MANAGEMENT SYSTEM (EIMS), AUTO ENGINE IDLE SHUTDOWN (EIS), VARIABLE SPEED FAN AND LOAD SENSING HYDRAULICS HELP RESULT IN THE LOW FUEL CONSUMPTION ON THIS MACHINE. | EASY TO OPERATE AND MAINTAIN INTUITIVE CONTROLS AND EXCELLENT VISIBILITY PROVIDE A COMFORTABLE WORKING ENVIRONMENT FOR EFFICIENT ALL DAY OPERATION. GROUPED SERVICE POINTS AND SIGHT GAUGES ALLOW FOR EASY DAILY MAINTENANCE. | ONE MACHINE, MANY JOBS DESIGNED TO HANDLE ALL THE JOBS ON YOUR WORKSITE FROM MATERIAL HANDLING AND TRUCK LOADING TO GENERAL CONSTRUCTION. THIS MACHINE IS PURPOSE BUILT TO BE JUST THE RIGHT MACHINE FOR YOUR WORK. |
PRODUCT SPECIFICATIONS FOR CAT 950 GC
—
| Emissions | Tier 4/Stage V |
| Displacement | 7.01 l |
| Maximum Power - 1,700 rpm - ISO 14396 | 179 kW |
| Maximum Power - 1,700 rpm - ISO 14396 - Metric | 179 kW |
| Peak Gross Torque - 1,400 rpm - SAE J1995 | 1099 N·m |
| Peak Gross Torque - 1,400 rpm - ISO 14396 | 1092 N·m |
| Engine Model | Cat C7.1 |
| Maximum Net Power - 1,700 rpm - ISO 9249 | 168 kW |
| Maximum Net Power - 1,700 rpm - SAE J1349 | 168 kW |
| Maximum Power - 1,700 rpm - SAE J1995 | 180 kW |
| Note | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.995 tons). |
| Bore | 105 mm |
| Stroke | 135 mm |
| Operating Weight | 18849 kg |

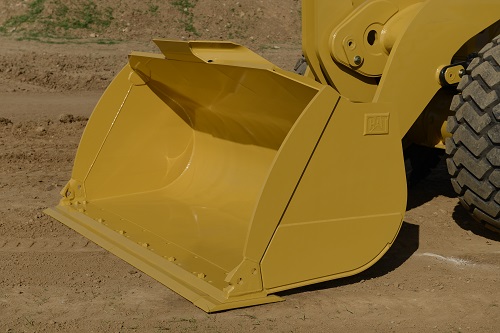

| Bucket Capacities | 2.9-4.4 m³ (3.75-5.75 yd³) |
| Reverse - 3 | 22.8 km/h |
| Forward - 3 | 22.8 km/h |
| Forward - 1 | 7.3 km/h |
| Forward - 2 | 12.8 km/h |
| Forward - 4 | 36 km/h |
| Reverse - 2 | 12.8 km/h |
| Reverse - 1 | 7.3 km/h |
| Note | Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 760 mm (30 in) roll radius. |
| Hydraulic Cycle Time - Total Cycle Time | 9.4 s |
| Steering System - Pump Type | Piston |
| Implement System - Maximum Operating Pressure @ 50 ± 1.5 L/min (13.2 + 0.4 gal/min) | 27900 kPa |
| Implement System - Maximum Pump Output at 2,390 rpm | 256 l/min |
| DEF Tank | 16 l |
| Transmission | 45 l |
| Fuel Tank Size | 290 l |
| Cooling System | 50 l |
| Differential - Final Drives - Rear | 38 l |
| Differential - Final Drives - Front | 40 l |
| Crankcase | 18 l |
| Hydraulic Tank | 112 l |
| With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008) | 73 dB(A) |
| With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008) | 109 dB(A) |
| With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013) | 76 dB(A)* |
| Note (1) | *Distance of 15 m (49.2 ft), moving forward in second gear ratio. |
| With Cooling Fan Speed at 70% of Maximum Value: Note (2) | European Union Directive "2000/14/EC" as amended by "2005/88/EC." |
| With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)** | 73 dB(A) |
| With Cooling Fan Speed at 70% of Maximum Value: Note (1) | For machines in European Union countries and in countries that adopt the EU Directives |
| With Cooling Fan Speed at Maximum Value - Note | Distance of 15 m (49.2 ft), moving forward in second gear ratio. |
| With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)** | 107 LWA*** |
| Note (3) | ***European Union Directive "2000/14/EC" as amended by "2005/88/EC." |
| Note (2) | **For machines in European Union countries and in countries that adopt the "EU Directives." |
| Rack Back - Ground | 40 degrees |
| Height - Top of Exhaust Pipe | 3416 mm |
| Centerline of Rear Axle to Hitch | 1650 mm |
| Lift Arm Clearance | 3649 mm |
| B-Pin Height | 4188 mm |
| Centerline of Rear Axle to Edge of Counterweight | 2055 mm |
| Ground Clearance | 460 mm |
| Rack Back - Maximum Lift | 60 degrees |
| Height - Top of Hood | 2673 mm |
| Wheel Base | 3300 mm |
| Height - Top of ROPS | 3458 mm |
| Rack Back - Carry | 45 degrees |
| Note | All dimensions are approximate and based on MAXAM MS302 23.5R25 L3 radial tires. |
| Note (2) | *Full compliance to ISO (2007) 14397-1 Sections 1 thru 6, which requires 2% verification between calculations and testing. |
| Tipping Load - Full Turn - Rigid Tires** | 11737 kg |
| Breakout Force | 154 kN |
| Tipping Load - Full Turn - ISO 14397-1* | 11006 kg |
| Note (3) | **Compliance to ISO (2007) 14397-1 Sections 1 thru 5. |
| Operating Weight | 18849 kg |
| Note (1) | For 3.1 m3 (4 yd3) general purpose buckets with BOCE. Weight based on a machine configuration with MAXAM MS302 23.5R25 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, secondary steering, sound suppression. |
