330 GC

OVERVIEW
—

THE CAT 330 GC offers you the ideal balance of dependable performance operator productivity features, and reduced costs. The Cat 330 GC is a smart choice for operations where high reliability and low-cost-per-hour performance are priorities.

UP TO12% LESS FUEL CONSUMPTION

THE PRECISE COMBINATION OF LARGER HYDRAULIC PUMPS, AN ELECTRONIC MAIN CONTROL VALVE, AND ELECTRONICALLY CONTROLLED COOLING FANS DELIVERS TOP PERFORMANCE WHILE BURNING LESS FUEL.

CAB DESIGN FOR SAFETY

THE ISO-CERTIFIED ROPS CAB IS SOUND SUPPRESSED AND THE LARGE WINDOWS PROVIDE ALL AROUND VISIBILITY FOR A SAFER, QUIETER WORK ENVIRONMENT.

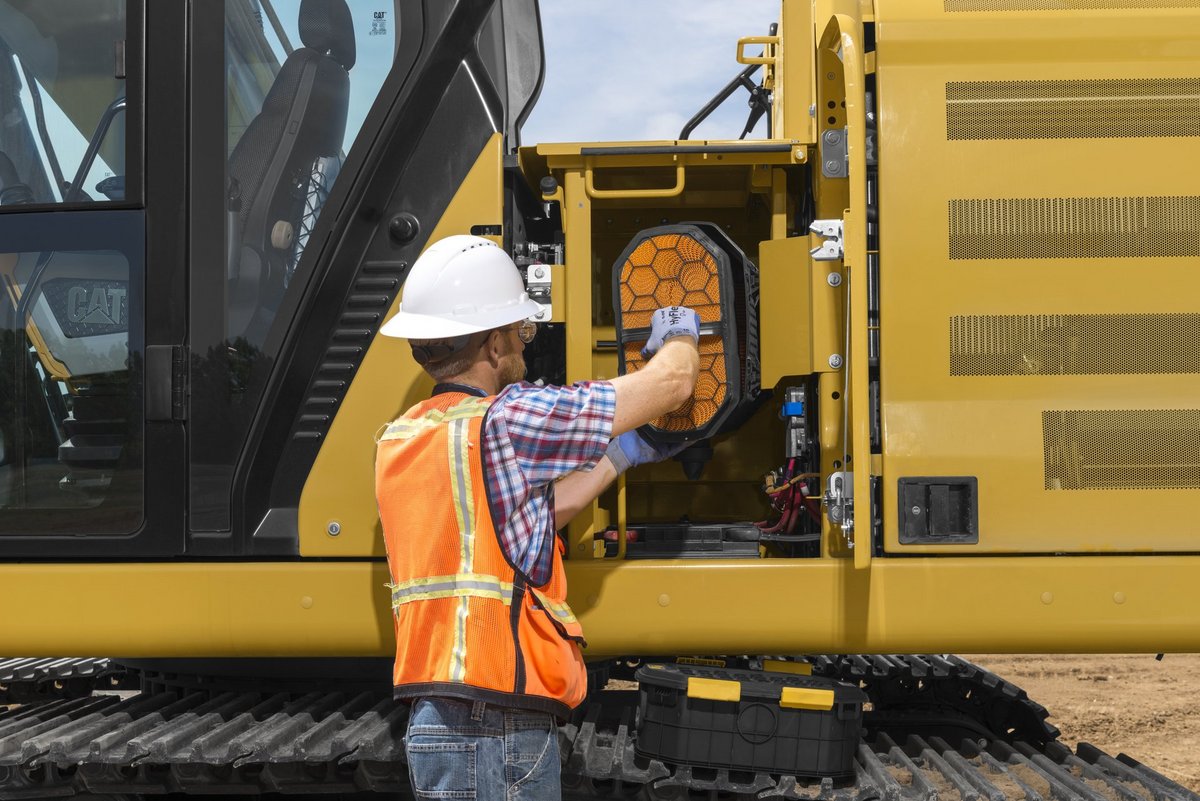

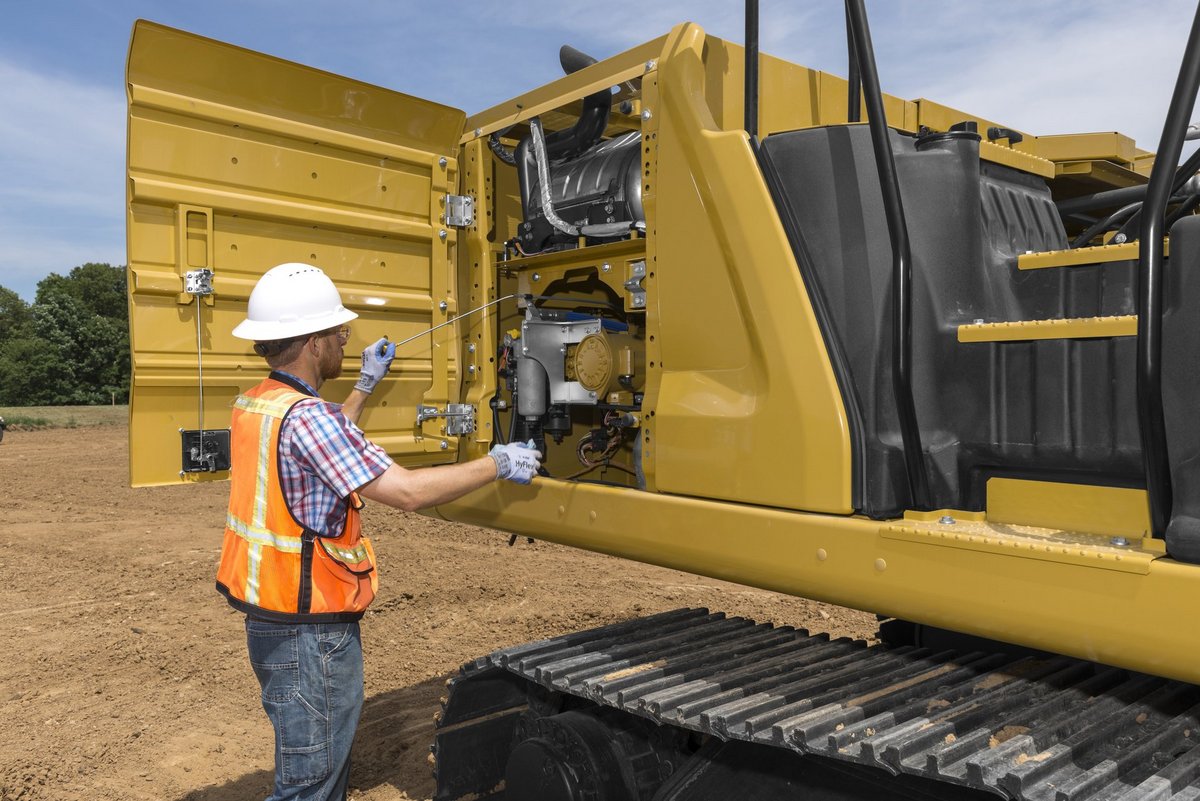

UP TO 25% LOWER MAINTENANCE COSTS

WITH EXTENDED AND MORE SYNCHRONIZED MAINTENANCE INTERVALS, YOU GET MORE DONE AT A LOWER COST COMPARED TO THE PREVIOUS MODEL.

PRODUCT SPECIFICATIONS FOR CAT 330 GC

—

Engine Model	Cat® C7.1
Engine Power - ISO 14396	152 kW
Bore	105 mm
Stroke	135 mm
Displacement	7.01 l

Main System - Maximum Flow	560 ./min (148 gal/min)
Maximum Pressure - Equipment	35000 kPa
Maximum Pressure - Travel	35000 kPa
Maximum Pressure - Swing	28400 kPa

Swing Speed	11.5 r/min
Maximum Swing Torque	82 kN·m

Operating Weight

30700 kg

Fuel Tank Capacity	474 l
Cooling System	25 l
Engine Oil	25 l
Swing Drive - Each	10 l
Final Drive - Each	5.5 l
Hydraulic System - Including Tank	310 l
Hydraulic Tank	147 l
DEF Tank	41 l

Boom	Reach Boom 6.15 m (20'2")
Stick	Reach Stick R3.2CB2 (10'6")
Bucket	1658 mm (5'5")
Shipping Height - Top of Cab	3050 mm
Handrail Height	3050 mm
Shipping Length	10420 mm
Tail Swing Radius	3130 mm
Counterweight Clearance	1110 mm
Ground Clearance	490 mm
Track Length	4860 mm
Length to Center of Rollers	3490 mm
Track Gauge	2390 mm
Transport Width	3190 mm

Maximum Digging Depth	7260 mm
Boom	Reach Boom 6.15 m (20'2")
Stick	Reach Stick R3.2CB2 (10'6"
Bucket	1658 mm (5'5")
Maximum Reach at Ground Level	10690 mm
Maximum Cutting Height	10020 mm
Maximum Loading Height	6940 mm
Minimum Loading Height	2280 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	7100 mm
Maximum Vertical Wall Digging Depth	6030 mm
Bucket Digging Force - ISO	179 kN
Stick Digging Force - ISO	126 kN
