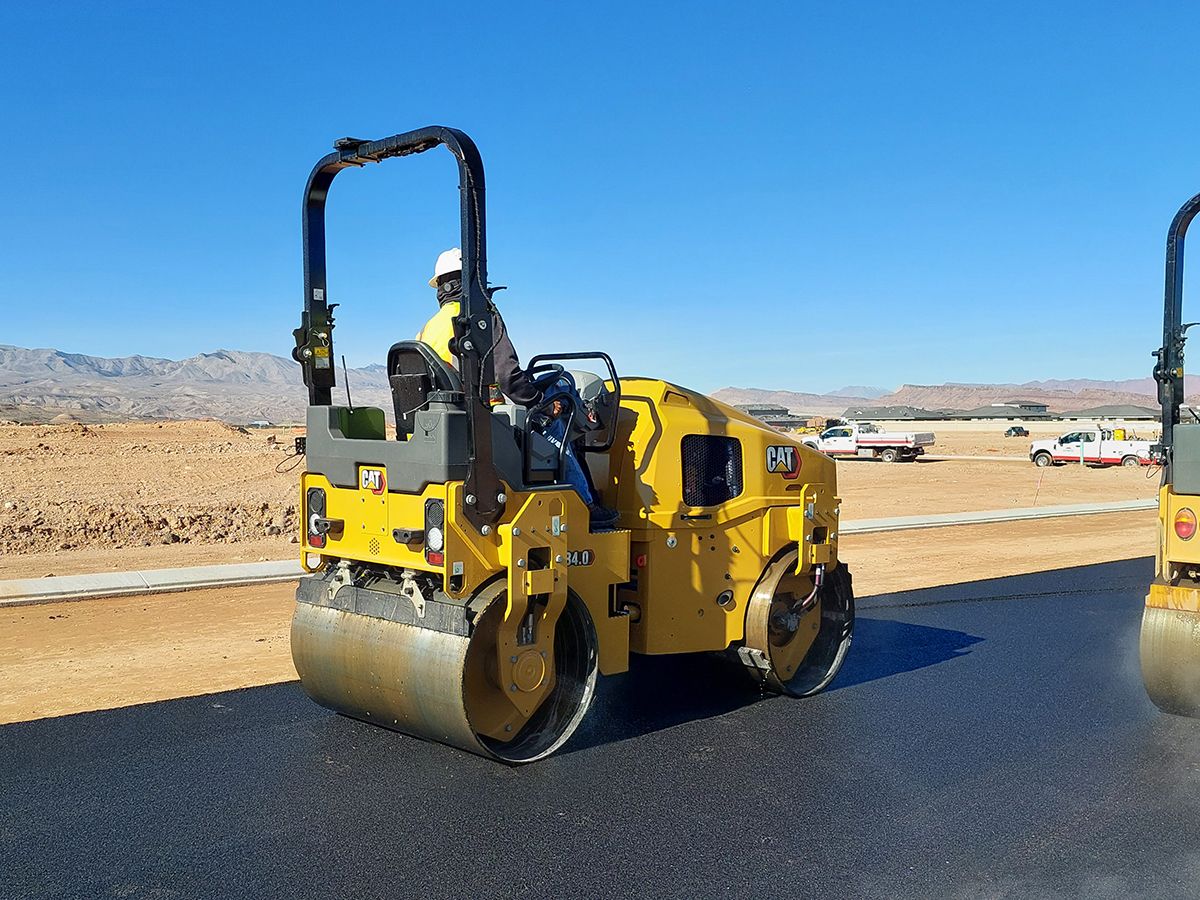

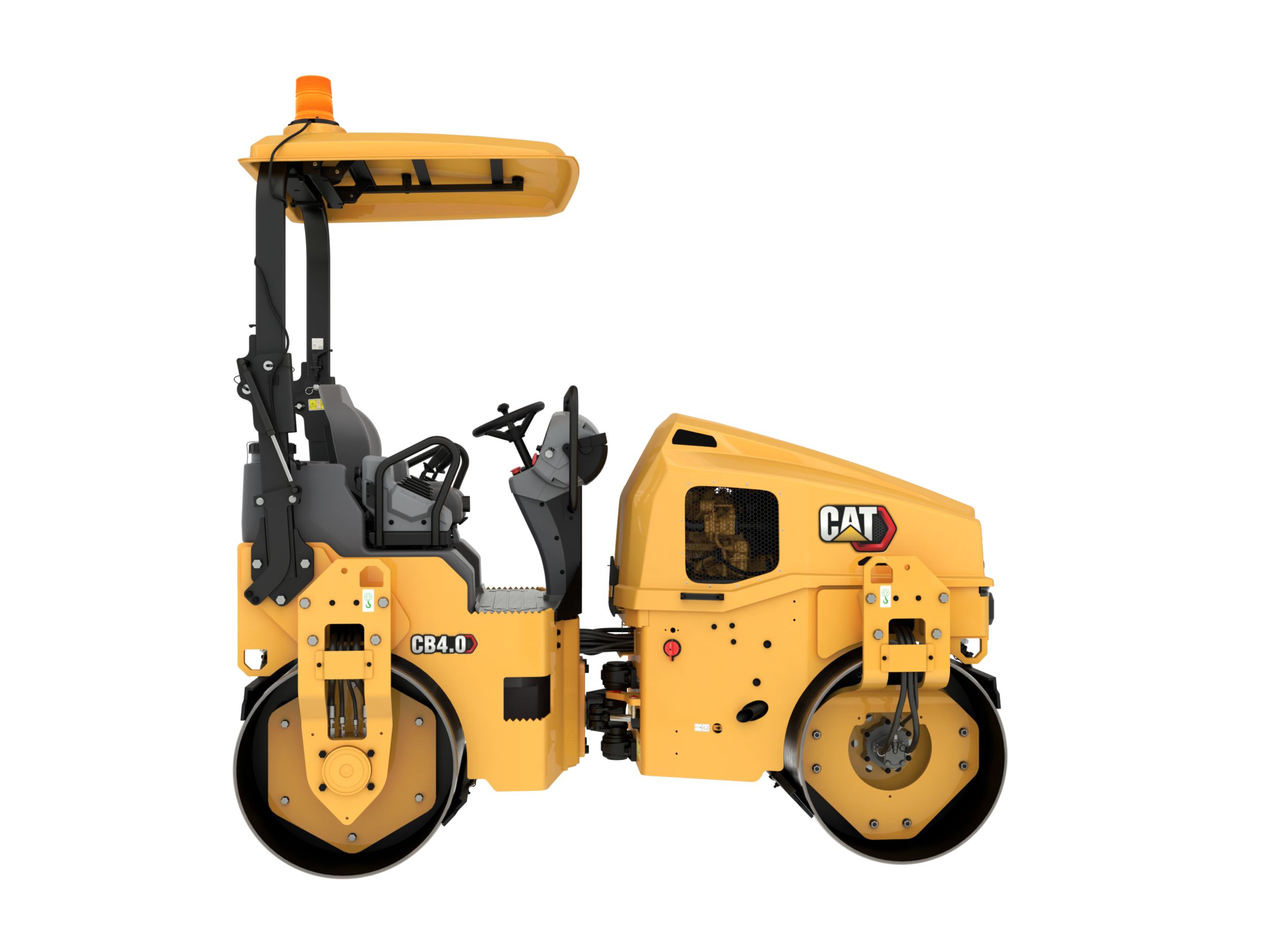

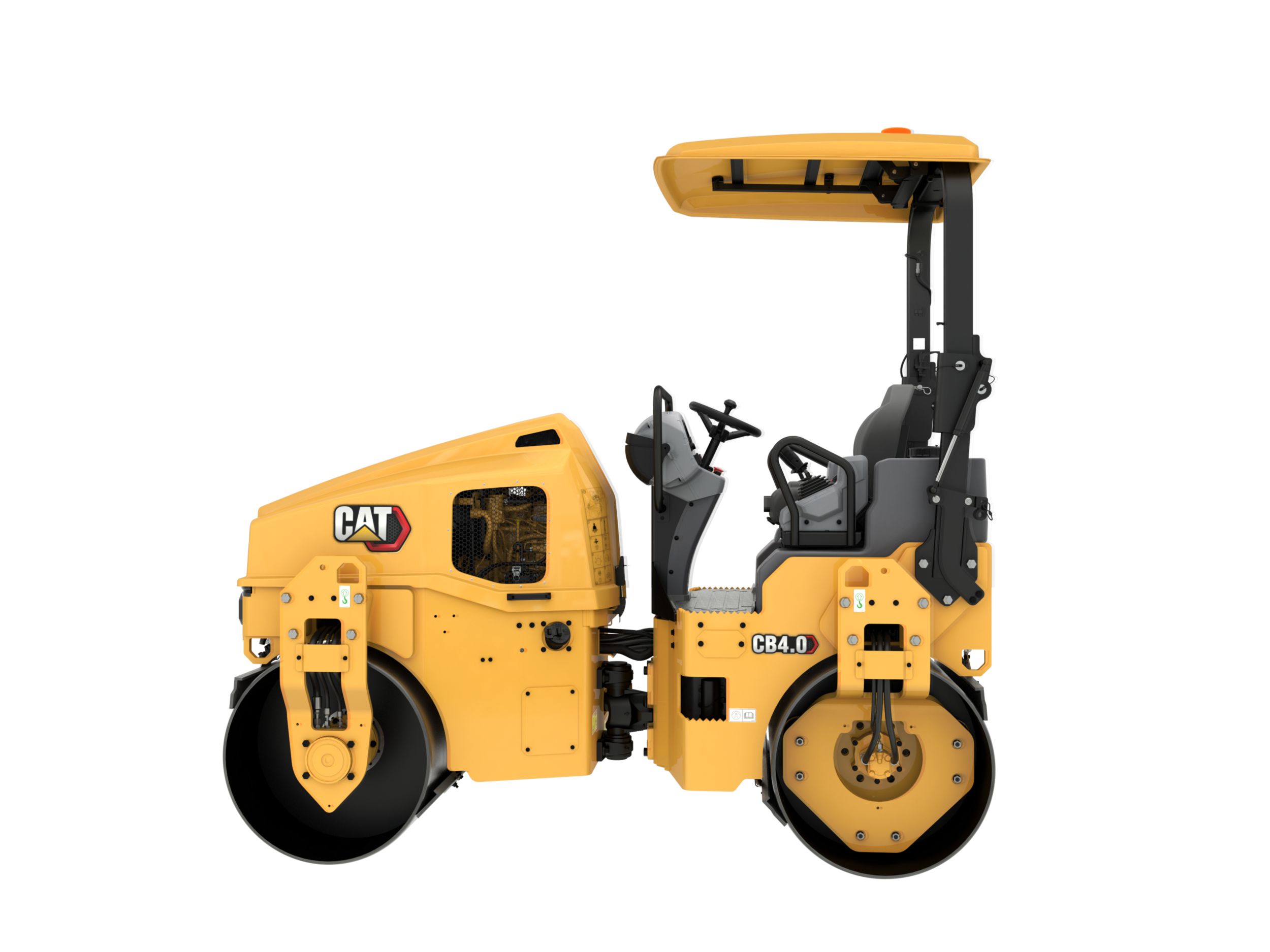

Cat CB4.0
Compactors
- Di serie con arco ROPS ribaltabile
- Protezione antivandalismo, irrigazione sotto pressione, illuminazione e equipaggiamento elettrico di alta qualità
- Comodo sedile con sistema a 1 chiave, spostabile lateralmente per guidare con maggior precisione quando si effettuano i bordi delle fasce
- Solido sistema di vibrazione perfettamente protetto contro lo sporco
- Sistema di comando a traslazione monoleva con comando a pilota idraulico e sterzo scorrevole per lavorare in tutta comodità e senza stancarsi
- Elevata velocità di lavoro possibile per compattare con rapidità ed efficacia
• Rocker switches and Cat gauge cluster with water tank gauge to help make operation easy
• Variable water spray system to extend time between water fills
• Optional sliding operator seat and dual propel levers for reducing operator fatigue and better job surface visibility
• Large 800 mm (31.5 in) drum diameters for smooth mat finish
• 16 mm (0.6 in) thick drum shells for longer durability
• Dual vibratory frequencies and ballast options to maximize compactive effort
• C1.7T engine with 36 kW (48.2 hp) (gross)
• Product link for remote monitoring of machine location and status
• Optional Compaction Measurement Value (CMV) displayed to the operator for improved compaction performance and consistency
• High visability 75 mm (3 in) orange seatbelt to make job site safety visible
• Seat with operator presence sensor to prevent unintended operation while out of the seat
• Slip resistant steps and platform for improved operator safety
• Optional rotating amber beacon
• Cat controls with ET capability for easy troubleshooting
• Reduced maintenance tasks for quick servicing
• 500 hour oil change interval to reduce maintenance time and costs
• Uptime kits and customer value agreements available to ensure maximum uptime
• LED lighting for durable and reliable performance
• External fuel fill for easy access
| Compaction Width | 1300 mm |
|---|---|
| Overall Length | 2853 mm |
| Overall Width | 1400 mm |
| Drum Width | 1300 mm |
| Drum Diameter | 800 mm |
| Wheel Base | 2050 mm |
| Height - ROPS | 2660 mm |
| Engine Power (1) | 48.2 hp |
|---|---|
| Engine Model | C1.7T |
| Drum Offset | 50 mm |
|---|---|
| Curb Clearance | 499 mm |
| Ground Clearance | 284 mm |
| Travel Speed - Maximum | 13 km/h |
| Turning Radius - Inside Drum Edge | 2926 mm |
| Turning Radius - Outside Drum Edge | 4226 mm |
| Fuel Tank Capacity | 81 l |
|---|---|
| Water Spray Tank Capacity | 300 l |
| Frequency | 55/45 Hz (3300/2700 vpm) |
|---|---|
| Nominal Amplitude - High | 0.5 mm |
| Centrifugal Force - Maximum | 33.47 kN |
| Standard Operating Weight with ROPS | 3623 kg |
|---|---|
| Maximum Operating Weight with ROPS | 4315 kg |
| Static Linear Load | 13.9 kg/cm |
| Operating Weight - At Front Drum with ROPS/FOPS | 1744 kg |
| Operating Weight - At Rear Drum with ROPS/FOPS | 1879 kg |
