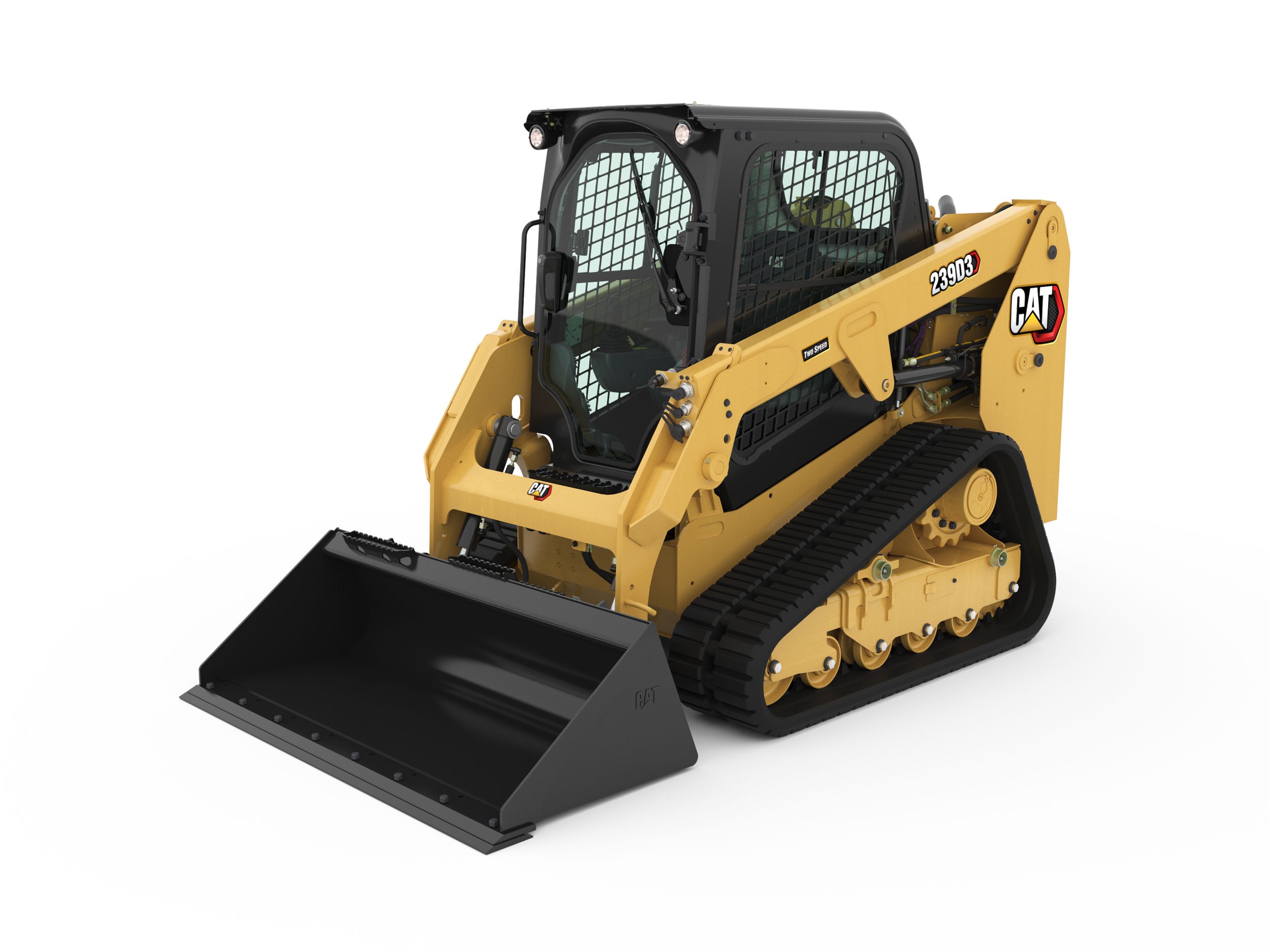

Cat 239D3
Tracked Skid-Steer Loader
- Optimaalse nähtavusega kabiin tagab maksimaalse efektiivsuse
- Tagurduskaamera parimaks tahavaateks
- Multifunktsionaalne juhtkang elektrilise pilootjuhtimisega
- Proportsionaalse juhtimisega abihüdraulika
- Võrratu sõidumugavus masinajuhile tänu vedruga šassiile
- Ehitatud kestma ja kõrge edasimüügiväärtusega

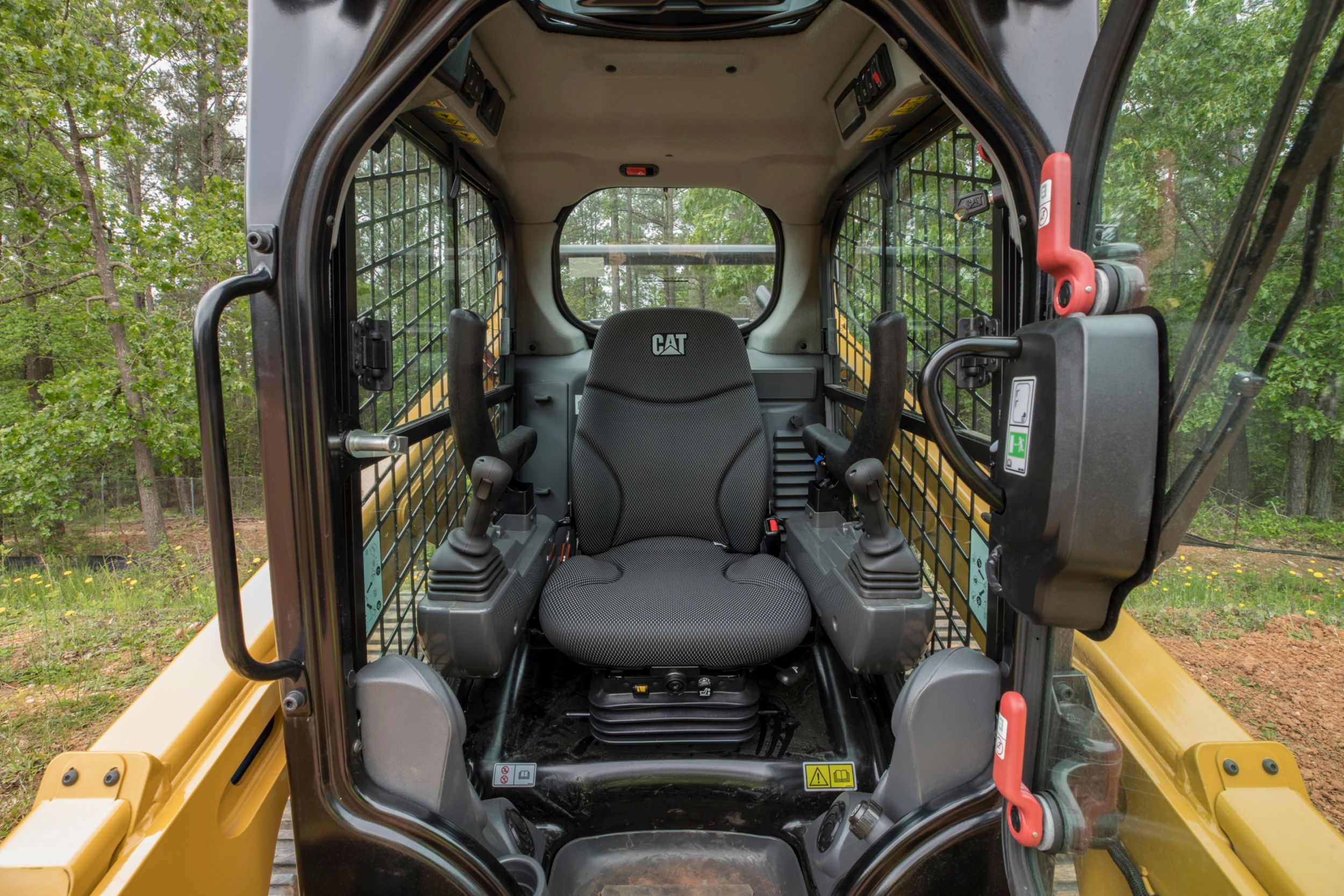

The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.
Maximum Performance
High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.
Making Your Job Easier
Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.
A Smooth Ride

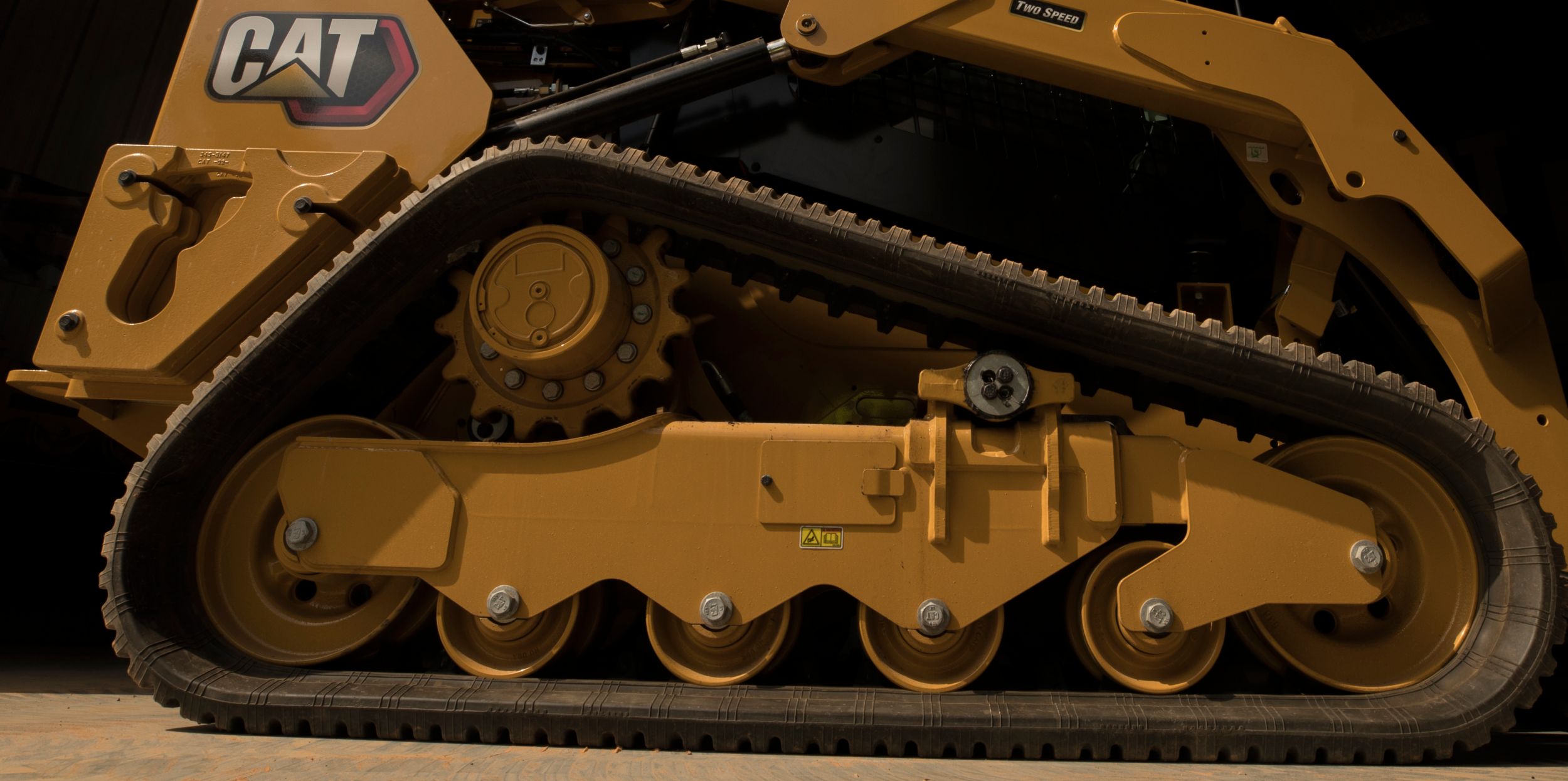

A standard, fully independent torsion axle suspension combined with the optional Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort.
Optimized Machine Capability

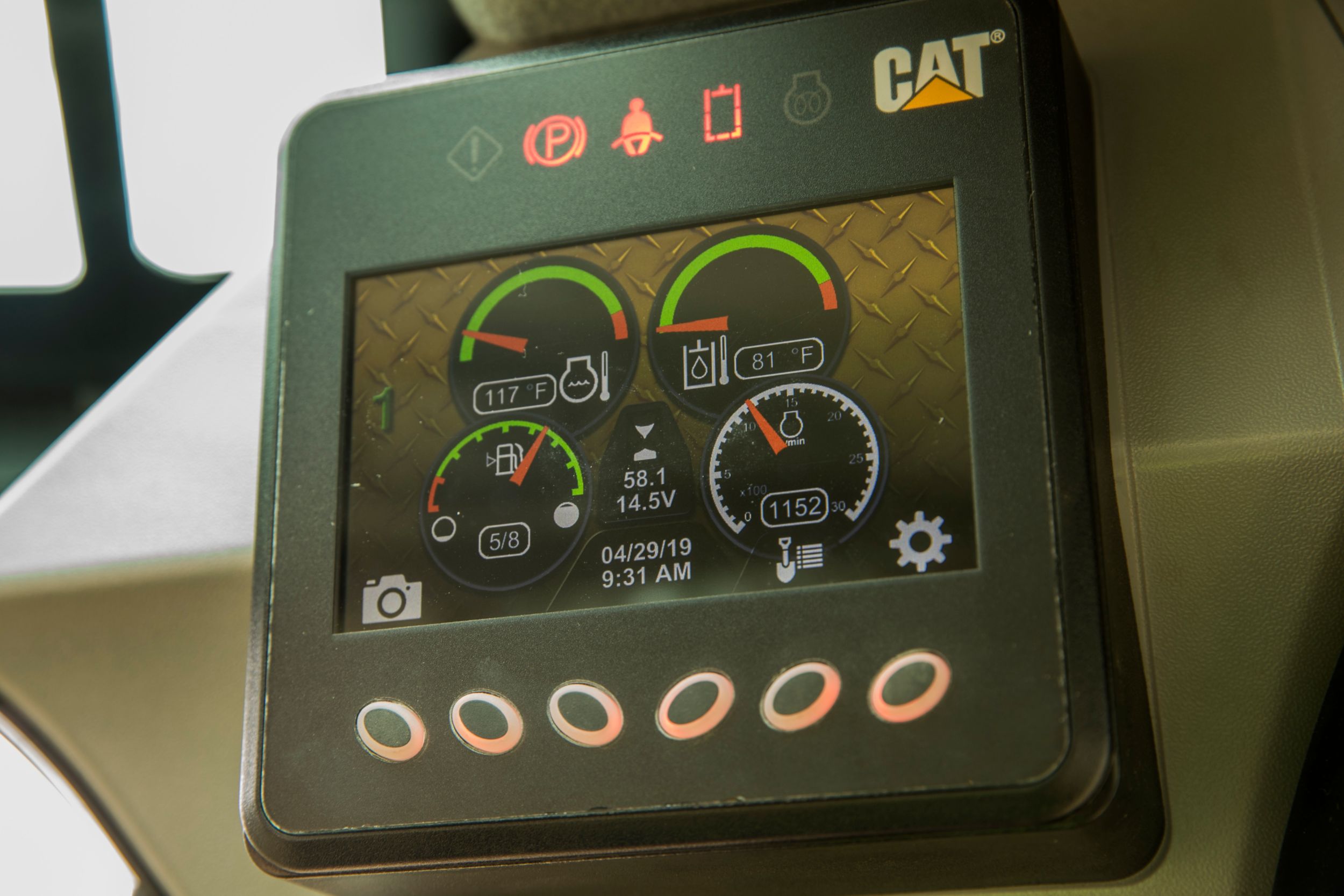

Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.
Sustainability
- The Cat® C2.2 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester). Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Cat® Extended Life Coolant and long-life HYDO Advanced hydraulic fluids not only reduce downtime but help decrease the amount of fluid and filters that are replaced over the life of the machine.
- Boost productivity with Cat technologies like work tool positioner, return to dig, and Cat Smart Attachments.
- Save fuel and reduce your greenhouse gas emissions with efficiency features such as foot throttle pedal and cooling system demand fan.
Air Conditioning System (if equipped)
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. |
|---|
Cab
| ROPS | ISO 3471:2008 |
|---|---|
| FOPS | ISO 3449:2005 Level I |
Dimensions
| Vehicle Width (320 mm/12.6 in tracks) | 1676 mm |
|---|---|
| Ground Clearance | 195 mm |
| Length - With Bucket on Ground | 3234 mm |
| Length - Without Bucket | 2522 mm |
| Maximum Reach - With Arms Parallel to Ground | 1356 mm |
| Turning Radius from Center - Bucket | 2069 mm |
| Overall Length - Track | 1808 mm |
| Reach - Maximum Lift/Dump | 563 mm |
| Vehicle Width (400 mm/15.7 in tracks) | 1756 mm |
| Maximum Overall Height | 3645 mm |
| Bucket Pin Height - Carry Position | 218 mm |
| Length - Track on Ground | 1384 mm |
| Clearance at Maximum Lift and Dump | 2057 mm |
| Bucket Pin Height - Maximum Lift | 2825 mm |
| Departure Angle | 34.5° |
| Rack Back Angle - Maximum Height | 85.5° |
| Turning Radius from Center - Coupler | 1159 mm |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). |
| Height - Top of Cab | 2034 mm |
| Maximum Dump Angle | 50.3° |
| Turning Radius from Center - Machine Rear | 1458 mm |
Engine
| Gross Power - SAE J1995 | 50.1 kW |
|---|---|
| Displacement | 2.2 l |
| Bore | 84 mm |
| Stroke | 100 mm |
| Peak Torque - 1,500 rpm - SAE J1995 | 208 N·m |
| Net Power - SAE 1349 | 49.1 kW |
| Net Power - ISO 9249 | 49.6 kW |
| Engine Model | Cat C2.2 CRDI |
| Net Power | 49.1 kW |
Hydraulic System
| Hydraulic Flow - High Flow - Loader Hydraulic Flow | 99 l/min |
|---|---|
| Hydraulic Flow - Standard - Loader Hydraulic Pressure | 23000 kPa |
| Hydraulic Flow - Standard - Loader Hydraulic Flow | 69 l/min |
| Hydraulic Flow - High Flow - Loader Hydraulic Pressure | 23000 kPa |
| Hydraulic Flow - High Flow - Hydraulic Power (Calculated) | 38 kW |
| Hydraulic Flow - Standard - Hydraulic Power (Calculated) | 26.5 kW |
Noise Level
| Note (2) | **The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
|---|---|
| Outside Cab*** | 103 dB(A) |
| Note (3) | ***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
| Note (1) | Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
| Inside Cab** | 83 dB(A) |
Operating Specifications
| Rated Operating Capacities - 35% Tipping Load | 695 kg |
|---|---|
| Tipping Load | 1985 kg |
| Breakout Force - Tilt Cylinder | 1775 kg |
| Rated Operating Capacity with Optional Counterweight | 1090 kg |
| Ground Contact Area - With 320 mm/12.6 in Track | 0.89 m² |
| Ground Pressure - With 320 mm/12.6 in Track | 37.3 kPa |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). |
| Ground Contact Area - With 400 mm/15.7 in Track | 1.11 m² |
| Ground Pressure - With 400 mm/15.7 in Track | 30.6 kPa |
| Rated Operating Capacities - 50% Tipping Load | 995 kg |
Power Train
| Travel Speed - Forward or Reverse - Two Speed | 12.2 km/h |
|---|---|
| Travel Speed - Forward or Reverse - One Speed | 8.1 km/h |
Service Refill Capacities
| Cooling System | 12 l |
|---|---|
| Engine Crankcase | 10 l |
| Fuel Tank | 57 l |
| Hydraulic System | 45 l |
| Hydraulic Tank | 34 l |
Weights
| Operating Weight | 3372 kg |
|---|---|
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). |
